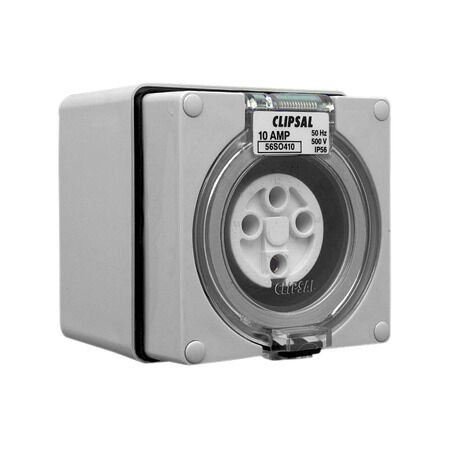

Surface Socket IP66 | 500V 10A | 4 Round Pins Grey by Clipsal
Surface socket with IP66 rating and 500V 10A capacity—ideal for industrial and utility applications. Built for durability, with surface mounting and robust polycarbonate construction.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Clipsal - 56 Series, Surface Socket, IP66, 500V 10A - 4 Round Pins Grey
Brand: Clipsal
SKU: 56SO410-GY
Alternatively Known As: Clipsal 56 Series Socket, Industrial Surface Socket, IP66 Socket
Technical Specifications
- Rated current: 10A
- Rated operational voltage: 500V AC 50Hz
- Device mounting: Surface
- Connections: Screw terminals for 1.5-6 mm² cables
- Socket number: 1
- Outlet standard: Industrial
- Material: Polycarbonate cover, brass screws
- Poles description: 3P + E
- Tightening torque: 0.8 N.m
- Dimensions (H x L x W): 107mm x 102mm x 101mm
- Weight: 0.54 kg
Key Features
- IP66 rated for protection against dust and water.
- Designed for surface mounting with external mounting mode.
- Rated current of 10A and operational voltage of 500V AC.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Small commercial, industry, utility
Standards & Compliance
- Complies with AS/NZS 3112 for safety and performance standards.
Environmental Benefits
- Compliant with RoHS directives and made with recycled materials.
Warranty Information
Standard warranty applies.
Available Now
The Clipsal 56 Series Surface Socket is available now for immediate purchase. Ideal for industrial applications requiring robust power solutions.
