Surface Socket IP66 | 500V 10A | 7 Round Pins Grey by Clipsal
Surface socket with IP66 rating and 500V 10A capacity—ideal for industrial and commercial applications. Built for durability, with 7 round pins and polycarbonate cover for enhanced safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

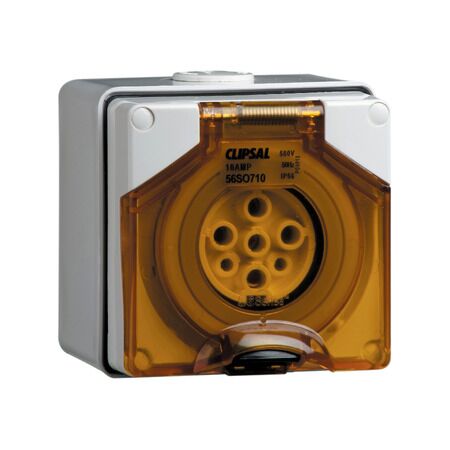

Product Name/Title: Clipsal - 56 Series, Surface Socket, IP66, 500V 10A - 7 Round Pins Grey
Brand: Clipsal
SKU: 56SO710-GY
Alternatively Known As: Clipsal 56 Series Socket, Industrial Surface Socket, 10A Socket Outlet
Technical Specifications
- Rated current: 10A
- Rated operational voltage: 500V AC 50Hz
- Socket number: 1
- Outlet standard: Industrial
- Poles description: 3P + N + E
- Material: Polycarbonate cover, brass screws
- Tightening torque: 0.8 N.m
- Dimensions (H x L x W): 107mm x 102mm x 101mm
- Weight: 0.6 kg
Key Features
- IP66 rated for dust and water resistance.
- Rated operational voltage of 500V AC 50Hz.
- Designed for surface mounting.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power supply for machinery and equipment
- Commercial: Small commercial utilities
Standards & Compliance
- Complies with AS/NZS 3112 for safety and performance standards.
Environmental Benefits
- Compliant with RoHS directives, reducing harmful substances.
Warranty Information
Standard warranty applies.
Available Now
The Clipsal 56 Series Surface Socket is available now for immediate purchase. Ideal for industrial and small commercial applications.
