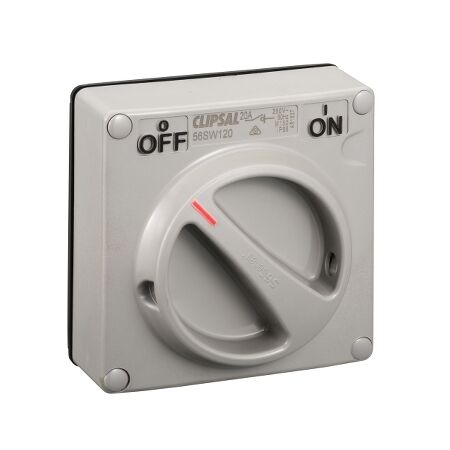

Surface Switch 1 Gang 1 Pole | 250VAC 20A | IP66 Rated | Chemical Grey by Clipsal

BRAND: Clipsal
SKU: 56SW120LE-CG
$73.20 List price: $109.80
+
Surface switch with 250VAC and 20A capacity—ideal for small commercial applications. Built for durability, with IP66 rating for dust and water protection.

Product Name/Title: Clipsal - 56 Series, Surface Switch, 1 Gang, 1 Pole, 250VAC, 20A, Less Enclosure - Chemical Grey

Brand: Clipsal

SKU: 56SW120LE-CG

Alternatively Known As: Clipsal Surface Switch, 56 Series Switch, Rotary Switch

Technical Specifications
  • Rated operational voltage: 250 V AC 50 Hz
  • Rated current: 20 A
  • Material: Polycarbonate (PC)
  • Breaking capacity: 20 kA
  • Rated short-circuit making capacity: 1 kA
  • Rated impulse withstand voltage: 4 kV
  • Tightening torque: 0.8 N.m
  • Marking: ON-OFF
  • Dimensions (H x L x W): 107mm x 72mm x 101mm
  • Weight: 0.32 kg
Key Features
  • 1-pole switch with rotary knob control
  • IP66 rated for protection against dust and water
  • Suitable for isolation
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Small commercial utility industry
Standards & Compliance
  • Complies with AS/NZS 3133 and AS 60529 for safety and performance standards.
Environmental Benefits
  • Compliant with RoHS directives and environmental regulations.
Warranty Information

Standard warranty applies.

Available Now

The Clipsal 56 Series Surface Switch is available now for immediate purchase. Ideal for small commercial applications.

56SW120LE-CG (56SW120LE-CG, 250 Kb) [Download]
