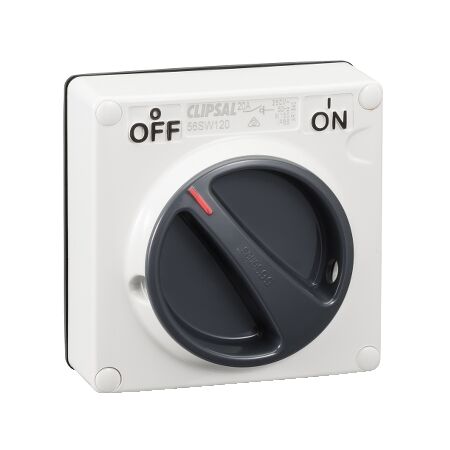

Surface Switch 1 Gang 1 Pole | 250VAC 20A | IP66 Rated | Resistant White by Clipsal

BRAND: Clipsal
SKU: 56SW120LE-RW
$65.30 List price: $98.00
+
Surface switch with 1 gang and 1 pole, rated at 250VAC and 20A—ideal for small commercial utility applications. Built for durability, with IP66 protection and a resistant white finish.

Product Name/Title: Clipsal - 56 Series, Surface Switch, 1 Gang, 1 Pole, 250VAC, 20A, Less Enclosure - Resistant White Electric

Brand: Clipsal

SKU: 56SW120LE-RW

Alternatively Known As: Clipsal Surface Switch, 56 Series Switch, 1 Gang Switch

Technical Specifications
  • Rated operational voltage: 250 V AC 50 Hz
  • Rated current: 20 A
  • Material: Polycarbonate
  • Breaking capacity: 20 kA
  • Rated impulse withstand voltage: 4 kV
  • Rated short-circuit making capacity: 1 kA
  • Tightening torque: 0.8 N.m
  • Dimensions (H x L x W): 107mm x 72mm x 101mm
  • Weight: 0.32 kg
Key Features
  • 1-pole switch with rotary knob control
  • IP66 rated for protection against dust and water
  • Suitable for surface mounting
  • Ambient temperature range: -25 to 75 °C
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Small commercial utility industry
Standards & Compliance
  • Complies with AS/NZS 3133 and AS 60529 for safety and performance standards.
Environmental Benefits
  • Compliant with RoHS directives and regulations.
Warranty Information

Standard warranty applies.

Available Now

The Clipsal 56 Series Surface Switch is available now for immediate purchase. Ideal for small commercial utility applications.

56SW120LE-RW (56SW120LE-RW, 247 Kb) [Download]
