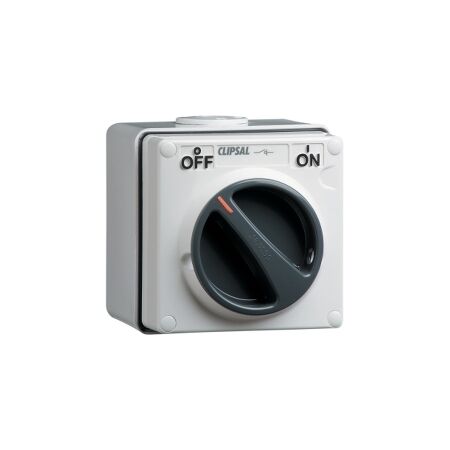

Surface Switch 1 Gang 1 Pole | 250VAC 32A | IP66 Rated | Grey by Clipsal
Surface switch with 250VAC and 32A rating—ideal for industrial control applications. Built for durability, with IP66 protection and 1-pole rotary knob control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Clipsal - 56 Series, Surface Switch, 1 Gang, 1 Pole, 250VAC, 32A - Grey
Brand: Clipsal
SKU: 56SW132-GY
Alternatively Known As: Clipsal Surface Switch, 56 Series Switch, Rotary Switch
Technical Specifications
- Rated operational voltage: 250 V AC 50 Hz
- Rated current: 32 A
- Material: Polycarbonate (PC)
- Marking: ON-OFF
- Breaking capacity: 32 kA
- Rated impulse withstand voltage: 4 kV
- Rated short-circuit making capacity: 1 kA
- Tightening torque: 0.8 N.m
- Ambient air temperature for operation: -25...75 °C
- Dimensions (H x L x W): 107mm x 108mm x 101mm
- Weight: 0.6 kg
Key Features
- 1-pole rotary knob control type.
- IP66 rated for protection against dust and water.
- Suitable for isolation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Control applications in utility and small commercial settings.
Standards & Compliance
- Complies with AS/NZS 3133 and AS 60529 for safety and performance standards.
Environmental Benefits
- Compliant with RoHS directives and regulations.
Warranty Information
Standard warranty applies.
Available Now
The Clipsal 56 Series Surface Switch is available now for immediate purchase. Ideal for industrial and commercial control applications.
