Surface Switch 1 Gang 2 Pole | 500VAC 63A | IP66 Rated | Grey by Clipsal
Surface switch with 500VAC and 63A capacity—ideal for industrial control applications. Built for durability, with IP66 rating for dust and water protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

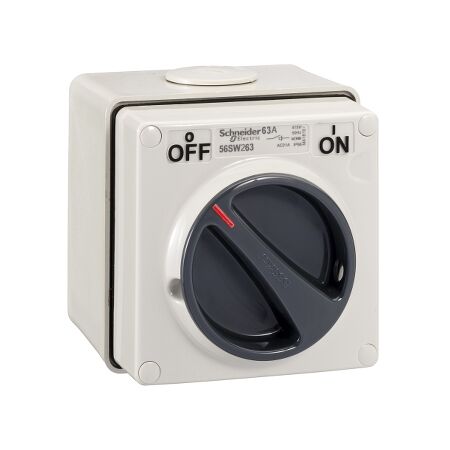

Product Name/Title: Clipsal - 56 Series, Surface Switch, 1 Gang, 2 Pole, 500VAC, 63A - Grey
Brand: Clipsal
SKU: 56SW263-GY
Alternatively Known As: Clipsal Surface Switch, 56 Series Switch, Rotary Switch
Technical Specifications
- Rated operational voltage: 250 V AC 50 Hz
- Rated current: 63 A
- Material: Polycarbonate (PC)
- Breaking capacity: 63 kA
- Rated impulse withstand voltage: 4 kV
- Rated short-circuit making capacity: 2.1 kA
- Tightening torque: 0.8 N.m
- Dimensions (H x L x W): 107mm x 108mm x 101mm
- Weight: 0.6 kg
Key Features
- 2-pole switch with rotary knob control.
- IP66 rated for protection against dust and water.
- Suitable for isolation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Control applications in small commercial and utility sectors.
Standards & Compliance
- Complies with AS/NZS 3133 and AS 60529 for safety and performance.
Environmental Benefits
- Compliant with RoHS directives and regulations.
Warranty Information
Standard warranty as per Clipsal's policy.
Available Now
The Clipsal 56 Series Surface Switch 1 Gang 2 Pole 500VAC 63A in Grey is available now for immediate purchase. Ideal for industrial control applications.
