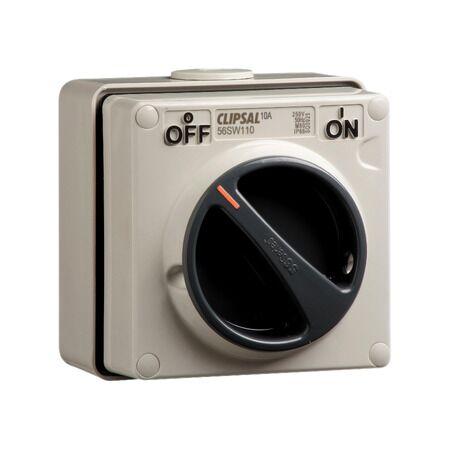

Surface Switch 1 Gang 250VAC 10A | IP66 Rated | Chemical Grey by Clipsal
Surface switch with 250VAC and 10A rating—ideal for industrial control applications. Built for durability, with IP66 protection and chemical grey finish.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Clipsal - 56 Series, Surface Switch, 1 Gang, 250VAC, 10A - Chemical Grey
Brand: Clipsal
SKU: 56SW110-CG
Alternatively Known As: Clipsal Surface Switch, 56 Series Switch, Industrial Switch
Technical Specifications
- Rated operational voltage: 250 V AC 50 Hz
- Rated current: 10 A
- Material: Polycarbonate (PC)
- Breaking capacity: 10 kA
- Ambient air temperature for operation: -25...75 °C
- Marking: ON-OFF
- Fixing mode: by screws
- Tightening torque: 0.8 N.m
- Dimensions (H x L x W): 107mm x 83mm x 101mm
- Weight: 0.46 kg
Key Features
- 1-pole rotary knob control type.
- IP66 rated for protection against dust and water.
- Designed for surface mounting.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Control applications in small commercial and utility settings.
Standards & Compliance
- Complies with AS/NZS 3133 and IP66 standards.
Environmental Benefits
- Compliant with RoHS directives and made with recycled cardboard packaging.
Warranty Information
Standard warranty applies.
Available Now
The Clipsal 56 Series Surface Switch 1 Gang 250VAC 10A in Chemical Grey is available now for immediate purchase. Ideal for industrial control applications.
