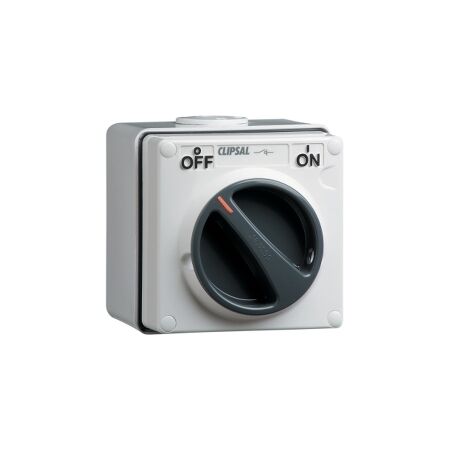

Surface Switch 1 Gang 250VAC 20A | IP66 Rated | Chemical Grey by Clipsal
Surface switch with 250VAC and 20A rating—ideal for small commercial utility industry. Built for durability, with IP66 protection and chemical grey finish.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Clipsal - 56 Series, Surface Switch, 1 Gang, 250VAC, 20A - Chemical Grey
Brand: Clipsal
SKU: 56SW120-CG
Alternatively Known As: Clipsal 56 Surface Switch, Clipsal 56 Series Switch, 1 Gang Switch
Technical Specifications
- Rated operational voltage: 250 V AC 50 Hz
- Rated current: 20 A
- Material: Polycarbonate (PC)
- Marking: ON-OFF
- Fixing mode: by screws
- Rated short-circuit making capacity: 1 kA
- Breaking capacity: 20 kA
- Rated impulse withstand voltage: 4 kV
- Rated short-time withstand current: 1.2 kA for 1 s
- Ambient air temperature for operation: -25...75 °C
- Dimensions (H x L x W): 107mm x 108mm x 101mm
- Weight: 0.517 kg
Key Features
- 1-pole rotary knob control
- IP66 rated for protection against dust and water
- Suitable for isolation
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Small commercial utility industry
Standards & Compliance
- Complies with AS/NZS 3133 and AS 60529 for safety and performance standards.
Environmental Benefits
- Compliant with RoHS directives and regulations.
Warranty Information
Standard warranty applies.
Available Now
The Clipsal 56 Series Surface Switch 1 Gang 250VAC 20A in Chemical Grey is available now for immediate purchase. Ideal for small commercial and industrial applications.
