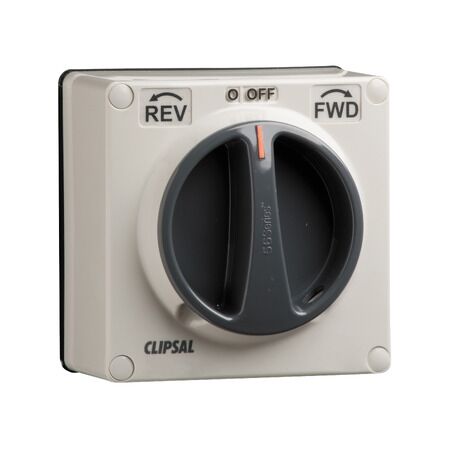

Surface Switch 1 Gang 3 Pole 20A | IP66 Rated | Rotary Control | Grey by Clipsal
Surface switch with 3-pole rotary control and 20A capacity—ideal for small commercial and industrial applications. Built for durability, with IP66 rating for dust and water protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Clipsal - 56 Series, Surface Switch, 1 Gang 3 Pole 20A Reversing Less Enclosure - Grey
Brand: Clipsal
SKU: 56SW320RLE-GY
Alternatively Known As: Clipsal Surface Switch, 3 Pole Switch, 20A Rotary Switch
Technical Specifications
- Rated operational voltage: 500 V AC 50 Hz
- Rated current: 20 A
- Material: Polycarbonate (PC)
- Breaking capacity: 20 kA
- Rated impulse withstand voltage: 4 kV
- Rated short-circuit making capacity: 1 kA
- Tightening torque: 0.8 N.m
- Ambient air temperature for operation: -25...75 °C
- Dimensions (H x L x W): 107mm x 72mm x 101mm
- Weight: 0.2 kg
Key Features
- 3-pole switch function with rotary knob control.
- IP66 rated for protection against dust and water.
- Suitable for isolation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Small commercial, industry, and utility applications.
Standards & Compliance
- Complies with AS/NZS 3133 and AS 60529.
Environmental Benefits
- Compliant with RoHS directives and made with recycled materials.
Warranty Information
Standard warranty applies.
Available Now
The Clipsal 56 Series Surface Switch 1 Gang 3 Pole 20A is available now for immediate purchase. Ideal for small commercial and industrial applications.
