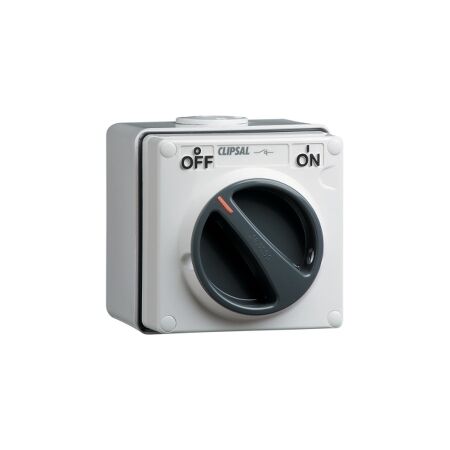

Surface Switch 1 Gang 3 Pole | 500VAC 10A | IP66 Chemical Grey by Clipsal

BRAND: Clipsal
SKU: 56SW310-CG
$100.50 List price: $150.80
+ −
30 Days Return Delivery Options
Surface switch with 500VAC and 10A rating—ideal for small commercial utility industry. Built for durability, with IP66 protection and rotary knob control.

Product Name/Title: Clipsal - 56 Series, Surface Switch, 1 Gang, 3 Pole, 500VAC, 10A - Chemical Grey

Brand: Clipsal

SKU: 56SW310-CG

Alternatively Known As: Clipsal 56 Series Switch, 3 Pole Switch, Surface Mount Switch

Technical Specifications
  • Rated operational voltage: 500 V AC 50 Hz
  • Rated current: 10 A
  • Material: Polycarbonate
  • Breaking capacity: 10 kA
  • Rated impulse withstand voltage: 4 kV
  • Rated short-circuit making capacity: 1 kA
  • Tightening torque: 0.8 N.m
  • Dimensions (H x L x W): 107mm x 108mm x 101mm
  • Weight: 0.6 kg
Key Features
  • 3-pole switch with rotary knob control
  • IP66 rated for protection against dust and water
  • Suitable for isolation
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Small commercial utility industry
Standards & Compliance
  • Complies with AS/NZS 3133 and AS 60529 for safety and performance standards.
Environmental Benefits
  • Compliant with RoHS and Reach regulations, contributing to environmental safety.
Warranty Information

Standard warranty as per Clipsal's policy.

Available Now

The Clipsal 56 Series Surface Switch 1 Gang 3 Pole 500VAC 10A in Chemical Grey is available now for immediate purchase. Ideal for small commercial and industrial applications.

56SW310-CG (56SW310-CG, 227 Kb) [Download]
