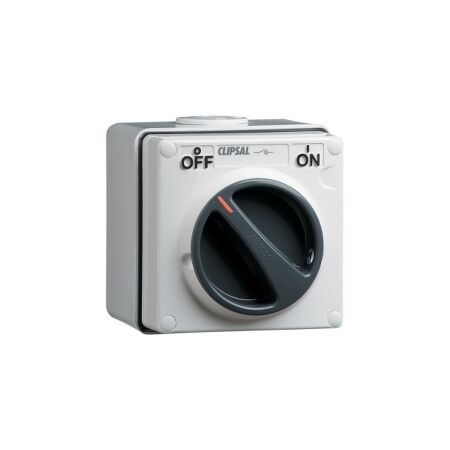

Surface Switch 1G 3P 500V AC 20A IP66 Rated Orange Clipsal

BRAND: Clipsal
SKU: CLI56SW320CXRO
$242.40 List price: $302.10
+ −
30 Days Return Electricians Unlock Trade Access
Clipsal Surface Switch AC Rated Resistant Orange features 500V AC 50Hz, 20A rated current and Rotary knob. 3-pole switch with rotary knob control.
Technical Specifications
  • Rated operational voltage: 500 V AC 50 Hz
  • Rated current: 20 A
  • Control type: Rotary knob
  • IP Rating: IP66 conforming to AS 60529
  • Breaking capacity: 20 kA
  • Rated short-circuit making capacity: 2.1 kA
  • Rated impulse withstand voltage: 4 kV
  • Rated short-time withstand current: 1.5 kA for 1 s
  • Material: Polycarbonate (PC)
  • Fixing mode: By screws
  • Dimensions (H x L x W): 107mm x 108mm x 101mm
  • Weight: 0.76 kg
Key Features
  • 3-pole switch with rotary knob control.
  • IP66 rated for protection against dust and water.
  • Rated operational voltage of 500VAC and current of 20A.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Control applications in small commercial and utility settings.
Standards & Compliance
  • Complies with AS/NZS 3133 for safety and performance standards.
Environmental Benefits
  • Compliant with RoHS directives and regulations.
Warranty Information

Standard warranty applies.

Available Now

The Clipsal 56 Series Surface Switch is available now for immediate purchase. Ideal for industrial control applications.

56SW320CX-RO (56SW320CX-RO, 227 Kb) [Download]
