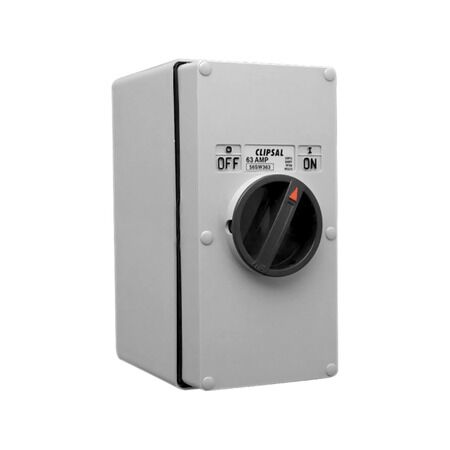

Surface Switch 2 Gang 3 Pole | 500VAC 63A | IP66 Rated | Grey by Clipsal

BRAND: Clipsal
SKU: 56SW363/2-GY
$290.00 List price: $435.00
+ −
30 Days Return Delivery Options
Surface switch with 500VAC and 63A rating—ideal for industrial and small commercial applications. Built for durability, with IP66 protection and rotary knob control.

Product Name/Title: Clipsal - 56 Series, Surface Switch, 2 Gang, 3 Pole, 500VAC, 63A - Grey

Brand: Clipsal

SKU: 56SW363/2-GY

Alternatively Known As: Clipsal 56 Series Switch, 3 Pole Surface Switch, Industrial Switch

Technical Specifications
  • Rated operational voltage: 500 V AC 50 Hz
  • Rated current: 63 A
  • Material: Polycarbonate
  • Marking: ON-OFF
  • Breaking capacity: 63 kA
  • Rated impulse withstand voltage: 4 kV
  • Rated short-circuit making capacity: 2.1 kA
  • Tightening torque: 0.8 N.m
  • Ambient air temperature for operation: -25...75 °C
  • Dimensions (H x L x W): 204mm x 108mm x 101mm
  • Weight: 1.1 kg
Key Features
  • 3-pole switch with rotary knob control
  • IP66 rated for protection against dust and water
  • Rated operational voltage of 500VAC and current of 63A
  • Suitable for isolation
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Utility and small commercial applications
Standards & Compliance
  • Complies with AS/NZS 3133 for safety and performance standards.
Environmental Benefits
  • Compliant with RoHS directives and environmental regulations.
Warranty Information

Standard warranty applies.

Available Now

The Clipsal 56 Series Surface Switch 2 Gang 3 Pole 500VAC 63A is available now for immediate purchase. Ideal for industrial and small commercial applications.

56SW363%252F2-GY (56SW363_2F2-GY, 202 Kb) [Download]
