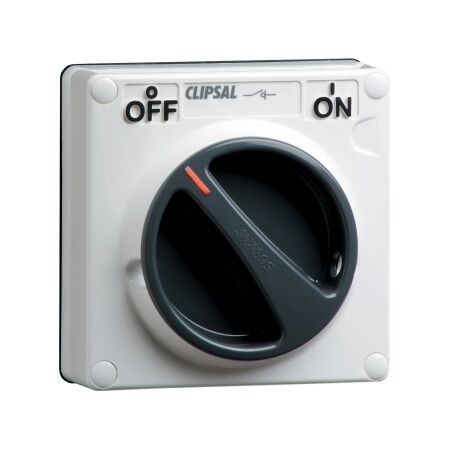

Surface Switch IP66 1 Gang 3 Pole | 10A Less Enclosure | Resistant Orange by Clipsal
Surface switch with IP66 rating and 3-pole rotary knob—ideal for small commercial and industrial applications. Built for durability, with resistant orange finish and easy surface mounting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Clipsal - 56 Series, Surface Switch, IP66 1 Gang 3 Pole 10A Less Enclosure - Resistant Orange
Brand: Clipsal
SKU: 56SW310LE-RO
Alternatively Known As: Clipsal Surface Switch, 3 Pole Switch, IP66 Switch
Technical Specifications
- Rated operational voltage: 500 V AC 50 Hz
- Rated current: 10 A
- Material: Polycarbonate (PC)
- Breaking capacity: 10 kA
- Rated impulse withstand voltage: 4 kV
- Rated short-circuit making capacity: 1 kA
- Tightening torque: 0.8 N.m
- Ambient air temperature for operation: -25...75 °C
- Dimensions (H x L x W): 107mm x 72mm x 101mm
- Weight: 0.38 kg
Key Features
- IP66 rated for protection against dust and water.
- 3-pole switch function with rotary knob control.
- Suitable for surface mounting.
Professional Installation Requirements
- Professional installation is recommended for optimal safety and compliance.
Applications
- Small commercial, industry, and utility applications.
Standards & Compliance
- Complies with AS/NZS 3133 and AS 60529.
Environmental Benefits
- Compliant with RoHS directives and environmental regulations.
Warranty Information
Standard warranty applies.
Available Now
The Clipsal 56 Series Surface Switch IP66 1 Gang 3 Pole 10A is available now for immediate purchase. Ideal for small commercial and industrial applications.
