Trade Discount 20%

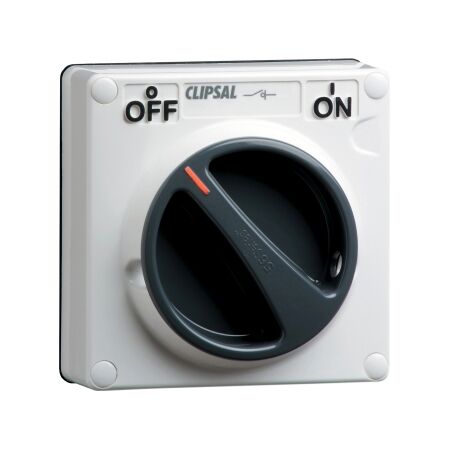

Surface Switch IP66 1G 3P 10A Chemical Grey 56 Series Clipsal
Clipsal Surface Switch Chemical Grey Series features 500V AC 50Hz, 10A rated current and Polycarbonate. IP66 rated for protection against dust and water.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated operational voltage: 500 V AC 50 Hz
- Rated current: 10 A
- Material: Polycarbonate (PC)
- Breaking capacity: 10 kA
- Rated short-circuit making capacity: 1 kA
- Rated impulse withstand voltage: 4 kV
- Rated short-time withstand current: 1.2 kA for 1 s
- Tightening torque: 0.8 N.m
- Dimensions (H x L x W): 107mm x 72mm x 101mm
- Weight: 0.38 kg
Key Features
- IP66 rated for protection against dust and water.
- 3-pole switch function with rotary knob control.
- Suitable for isolation.
Professional Installation Requirements
- Professional installation is recommended for optimal safety and compliance.
Applications
- Small commercial
- Industry
- Utility
Standards & Compliance
- Complies with AS/NZS 3133 and AS 60529.
Environmental Benefits
- Compliant with RoHS directives and regulations.
Warranty Information
Standard warranty applies.
Available Now
The Clipsal 56 Series Surface Switch IP66 1 Gang 3 Pole 10A is available now for immediate purchase. Ideal for small commercial and industrial applications.
