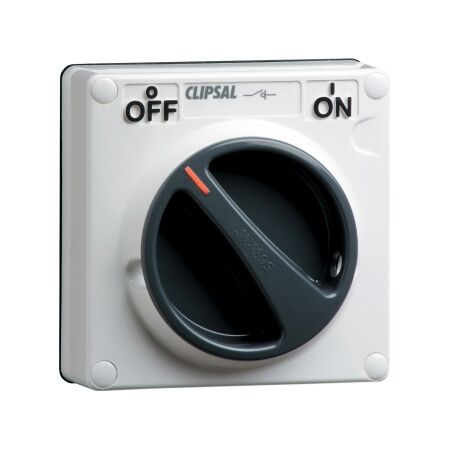

Surface Switch IP66 1G 3P 10A Less Enclosure Orange Clipsal
Clipsal Surface Switch Less Enclosure Resistant Orange features 500V AC 50Hz, 10A rated current and Polycarbonate.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated operational voltage: 500 V AC 50 Hz
- Rated current: 10 A
- Material: Polycarbonate (PC)
- Breaking capacity: 10 kA
- Rated impulse withstand voltage: 4 kV
- Rated short-circuit making capacity: 1 kA
- Tightening torque: 0.8 N.m
- Ambient air temperature for operation: -25...75 °C
- Dimensions (H x L x W): 107mm x 72mm x 101mm
- Weight: 0.38 kg
Key Features
- IP66 rated for protection against dust and water.
- 3-pole switch function with rotary knob control.
- Suitable for surface mounting.
Professional Installation Requirements
- Professional installation is recommended for optimal safety and compliance.
Applications
- Small commercial, industry, and utility applications.
Standards & Compliance
- Complies with AS/NZS 3133 and AS 60529.
Environmental Benefits
- Compliant with RoHS directives and environmental regulations.
Warranty Information
Standard warranty applies.
Available Now
The Clipsal 56 Series Surface Switch IP66 1 Gang 3 Pole 10A is available now for immediate purchase. Ideal for small commercial and industrial applications.
