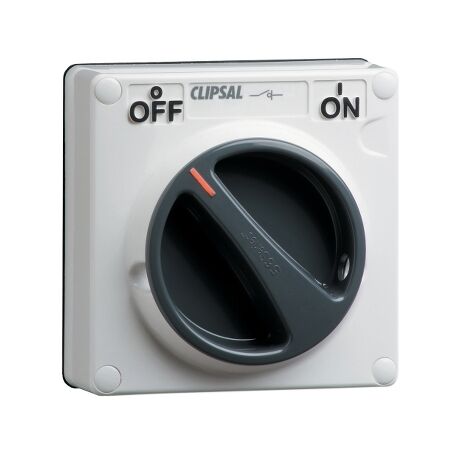

Surface Switch IP66 1G 3P 32A Resistant Orange 56 Series Clipsal
Clipsal Surface Switch Resistant Orange Series features 500V AC 50Hz, 32A rated current and Polycarbonate. IP66 rated for protection against dust and water.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated operational voltage: 500 V AC 50 Hz
- Rated current: 32 A
- Material: Polycarbonate (PC)
- Breaking capacity: 32 kA
- Rated impulse withstand voltage: 4 kV
- Rated short-circuit making capacity: 1 kA
- Tightening torque: 0.8 N.m
- Ambient air temperature for operation: -25...75 °C
- Dimensions (H x L x W): 107mm x 72mm x 101mm
- Weight: 0.32 kg
Key Features
- IP66 rated for protection against dust and water.
- 3-pole switch with rotary knob control.
- Suitable for isolation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Small commercial
- Industry
- Utility
Standards & Compliance
- Complies with AS/NZS 3133 and AS 60529.
Environmental Benefits
- Compliant with RoHS directives and environmental regulations.
Warranty Information
Standard warranty as per manufacturer guidelines.
Available Now
The Clipsal 56 Series Surface Switch IP66 1 Gang 3 Pole 32A is available now for immediate purchase. Ideal for small commercial and industrial applications.
