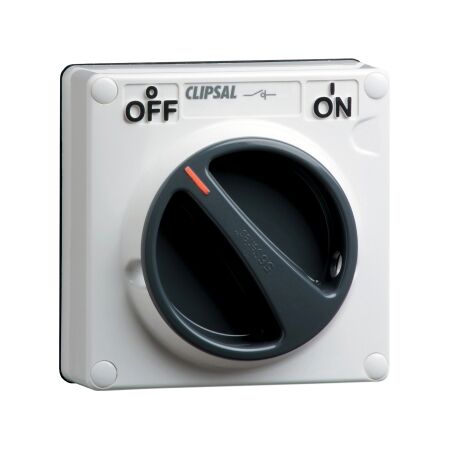

Surface Switch IP66 1G 3P 50A Grey Less Enclosure Clipsal
Clipsal Surface Switch Grey Less Enclosure features 500V AC 50Hz, 50A rated current and Polycarbonate. IP66 rated for protection against dust and water.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated operational voltage: 500 V AC 50 Hz
- Rated current: 50 A
- Material: Polycarbonate
- Breaking capacity: 50 kA
- Rated short-circuit making capacity: 2.1 kA
- Rated impulse withstand voltage: 4 kV
- Rated short-time withstand current: 1.5 kA for 1 s
- Tightening torque: 0.8 N.m
- Dimensions (H x L x W): 107mm x 69mm x 101mm
- Weight: 0.46 kg
Key Features
- IP66 rated for protection against dust and water.
- 3-pole rotary knob control for reliable operation.
- Suitable for isolation.
Professional Installation Requirements
- Professional installation is recommended for optimal safety and compliance.
Applications
- Utility: Industrial and small commercial applications
Standards & Compliance
- Complies with AS/NZS 3133 and AS 60529.
Environmental Benefits
- Compliant with RoHS directives and mercury-free.
Warranty Information
Standard warranty applies.
Available Now
The Clipsal 56 Series Surface Switch IP66 1 Gang 3 Pole 50A is available now for immediate purchase. Ideal for industrial and commercial applications.
