Surge Arrestor 1 Pole 20kA | 320V | Compact 18mm Width | Vertical by Connected Switchgear
Surge arrestor with 320V and 20kA capacity—ideal for residential and commercial surge protection. Built for rapid surge detection, with compact 18mm width and vertical configuration.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

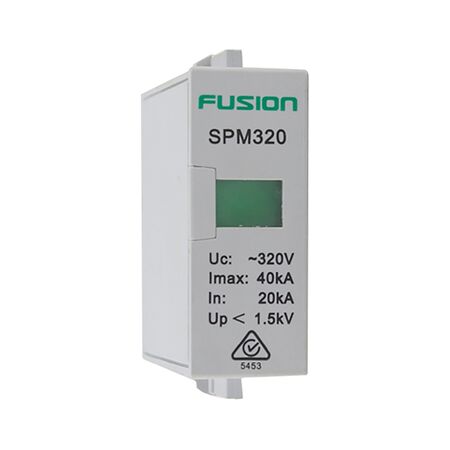

Product Name/Title: Surge Arrestor 1 Pole 20kA – MODULE ONLY
Brand: Connected Switchgear
SKU: SPM320-20
Alternatively Known As: Surge Protector Module, Surge Arrester Replacement Module, Surge Protection Device
Technical Specifications
- Product Code: SPM320-20
- Voltage: 320V
- Amperage: 20kA
- Configuration: Vertical
- Compliance: IEC 61643.1
- Waveform: Class 28/20us
- U_{p} ≤1.5kV
- Dimensions (H x L x W): 90mm x 70mm x 18mm
- Weight: 0.5 kg
Key Features
- High discharge capacity for rapid surge detection.
- FAILED Indicator for easy monitoring.
- 18mm width for compact installation.
- 35mm DIN rail mounting for standard setups.
- Replacement insert modules available.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes requiring surge protection
- Commercial: Businesses needing protection against power surges
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Protects electrical systems, reducing waste from damaged equipment.
Warranty Information
5 years warranty against manufacturing defects, covering replacement and installation by an authorized electrician.
Available Now
The Surge Arrestor 1 Pole 20kA – MODULE ONLY is available now for immediate purchase. Ideal for residential and commercial applications requiring surge protection.
