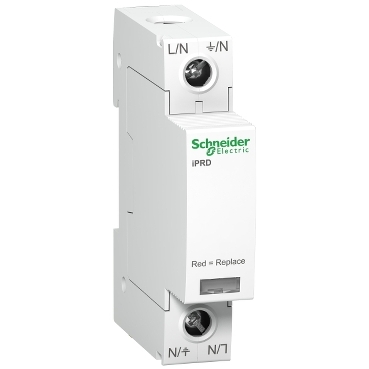

Surge Arrestor 240VAC 1P 8kA | Compact DIN Rail Mount | Transient Overvoltage Protection | by Clipsal
The Surge Arrestor 240VAC 1P 8kA is designed for effective surge protection in residential, commercial, and industrial settings. With a maximum surge current of 8kA and a compact DIN rail mount design, it safeguards sensitive electronic equipment from transient overvoltages. Ideal for licensed electricians, this device ensures compliance with AS/NZS standards for safe electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Surge Arrestor 240VAC 1P 8kA | Compact DIN Rail Mount | Transient Overvoltage Protection | by Clipsal
Brand: Clipsal
SKU: SCHA9L08100
Alternatively Known As: Surge Protector, SPD, Surge Suppressor, 1P Surge Arrestor, Clipsal SCHA9L08100
Technical Specifications
- Rated Voltage: 240VAC
- Number of Poles: 1P
- Maximum Discharge Current (Imax): 8kA
- Nominal Discharge Current (In): 5kA
- Mounting: DIN rail
- Response Time: <25ns
- Operating Frequency: 50/60Hz
- Operating Temperature: -40°C to +80°C
- Dimensions (H x L x W): 90mm x 70mm x 18mm
- Weight: 0.15 kg
Key Features
- Single pole surge protection device
- Rated for 240VAC systems
- 8kA maximum surge current
- Compact DIN rail mount design
- Provides protection against transient overvoltages
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 wiring rules.
Applications
- Residential switchboards
- Commercial electrical panels
- Industrial distribution boards
- Protection of sensitive electronic equipment
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Extends the lifespan of electrical and electronic equipment by preventing damage from voltage surges.
- Reduces electronic waste by minimizing equipment failure.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Surge Arrestor 240VAC 1P 8kA (SCHA9L08100) is available for immediate purchase. Ideal for protecting electrical installations in residential, commercial, and industrial environments.
