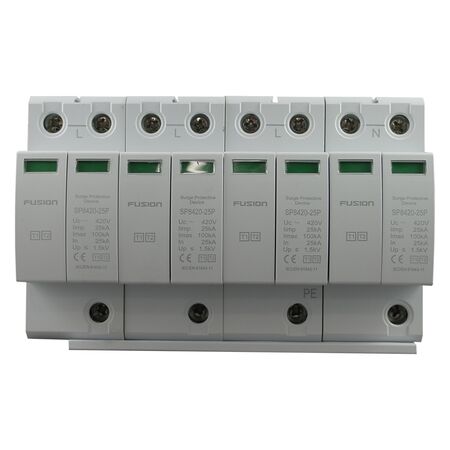

Surge Arrestor Type 1+2 | 4 Pole 420V 25kA | DIN Rail Mount | IP2X by Connected Switchgear
Surge arrestor with 420V rating and 4 pole configuration—ideal for residential, commercial, and industrial applications. Built for robust surge protection, with easy DIN rail mounting and IP2X design.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Surge Arrestor Type 1 + 2, 4 Pole 420V 25kA L-L-L-N-PE
Brand: Connected Switchgear
SKU: SP8420-25P
Alternatively Known As: Surge Protector, Surge Suppressor, Lightning Arrestor
Technical Specifications
- Product Code: SP8420-25P
- Voltage: 420V
- Poles: 4
- Configuration: L-L-L-N-PE connection
- I_{n}: 25kA
- I_{imp}: 25kA
- I_{max}: 100kA
- Class: 1
- Waveform: 10/350us, 8/20us
- U_{p}: ≤1.5kV
- DIN Rail Mounting: 144mm x 35mm
- Dimensions (H x L x W): 90mm x 35mm x 144mm
- Weight: 1.5 kg
Key Features
- Type 1 + Type 2 surge protection
- L-L-L-N-PE terminal connection
- Easy installation with DIN rail mount
- Fail-safe design
- Optional remote indicator with 3 pin NO/NC contact
- IP2X design
- Visual indicator
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes and apartments
- Commercial: Offices and retail spaces
- Industrial: Factories and manufacturing facilities
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Protects electrical systems, reducing waste and damage from power surges.
Warranty Information
5 Year Replacement Warranty on the Surge Arrestor 4P 420V.
Available Now
The Surge Arrestor Type 1 + 2, 4 Pole 420V 25kA is available now for immediate purchase. Ideal for residential, commercial, and industrial applications.
