Surge Diverter 1Pole 20kA | DIN Rail Mount | IP20 Protection by NHP
Surge diverter with 20kA nominal discharge current and DIN rail mounting—ideal for residential and commercial surge protection. Built for safety, with IP20 protection and easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

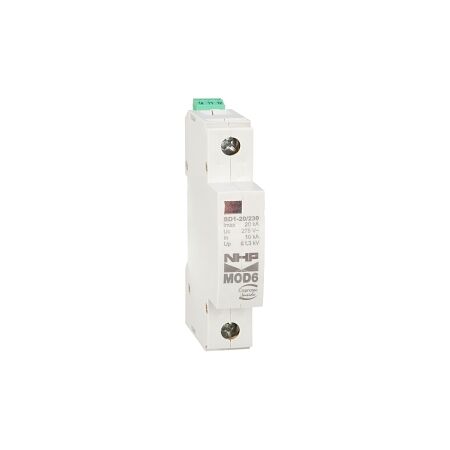

Product Name/Title: NHP MOD6 Surge Diverter 1Pole 20kA
Brand: NHP
SKU: MOD6SD120230
Alternatively Known As: Surge Protection Device, Surge Diverter, MOD6 Surge Diverter
Technical Specifications
- Nominal Discharge Surge Current: 20 kA
- Max Discharge Surge Current: 20 kA
- Nominal Voltage AC: 230 V
- Max Continuous Voltage AC: 275 V
- Mounting Method: DIN rail (top hat rail) 35 mm
- Construction Size: 1 modular spacing
- Degree of Protection: IP20
- Max Conductor Cross Section (Solid/Solid Stranded): 35 mm²
- Max Conductor Cross Section (Flexible Fine Strand): 25 mm²
- Dimensions (H x L x W): 90mm x 70mm x 18mm
- Weight: 0.5 kg
Key Features
- Surge diverter with a nominal discharge surge current of 20 kA.
- DIN rail mounting for easy installation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, offices
- Commercial: Retail, hospitality, workspaces
- General: Any location requiring surge protection for electrical systems
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Protects electrical systems from surges, reducing the risk of damage and waste.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The NHP MOD6 Surge Diverter 1Pole 20kA is available now for immediate purchase. Ideal for residential and commercial spaces requiring surge protection.
