Surge Diverter 1Pole 40kA | DIN Rail Mount | IP20 Protection by NHP
Surge diverter with 40kA max discharge current and DIN rail mounting—ideal for residential and commercial electrical systems. Built for optimal safety, with IP20 protection and compliance with AS/NZS 3000 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

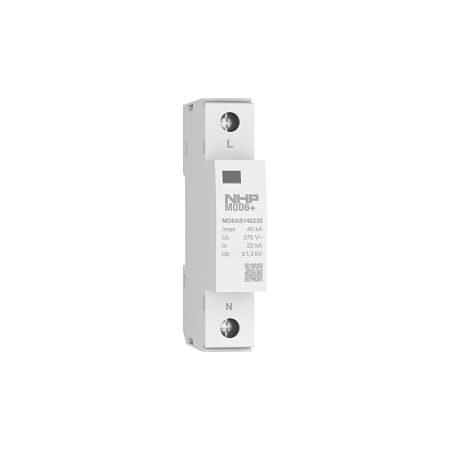

Product Name/Title: NHP MOD6+ Surge Diverter 1Pole 40kA
Brand: NHP
SKU: MD6AS140230
Alternatively Known As: Surge Protection Device, Surge Diverter, Surge Arrestor
Technical Specifications
- Nominal Discharge Surge Current (8/20): 20 kA
- Max Discharge Surge Current (8/20): 40 kA
- Nominal Voltage AC: 230 V
- Max Continuous Voltage AC: 275 V
- Mounting Method: DIN rail (top hat rail) 35 mm
- Construction Size: 1 modular spacing
- Degree of Protection: IP20
- Max Conductor Cross Section (Solid/Solid Stranded): 35 mm²
- Max Conductor Cross Section (Flexible Fine Strand): 25 mm²
- Dimensions (H x L x W): 90mm x 70mm x 18mm
- Weight: 0.5 kg
Key Features
- Surge diverter with a maximum discharge surge current of 40 kA.
- Designed for DIN rail mounting.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, offices
- Commercial: Retail, hospitality, workspaces
- General: Any location requiring surge protection for electrical systems
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation standards.
Environmental Benefits
- Protects electrical systems from surges, reducing the risk of damage and waste.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The NHP MOD6+ Surge Diverter 1Pole 40kA is available now for immediate purchase. Ideal for residential and commercial electrical systems.
