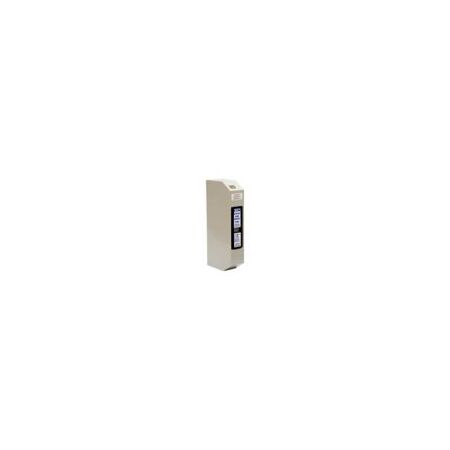

Surge Diverter 30kA Single-Phase | Class 2 Cat B & C Protection | -10°C to 65°C by Eaton
Protect your electrical systems with this single-phase surge diverter, featuring a 30kA nominal discharge current and Class 2 Cat B & C protection. Ideal for point of entry applications, it operates within -10°C to 65°C, ensuring reliable performance for residential and commercial installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Surge Diverter 30kA Single-Phase | Class 2 Cat B & C Protection | -10°C to 65°C by Eaton
Brand: Eaton
SKU: SPDQM1
Alternatively Known As: Surge Protection Device, SPD, Surge Diverter, Single-phase Surge Protector
Technical Specifications
- Product Name: Eaton Surge protection
- Catalog Number: SPDQM1
- Operating temperature: -10 °C to 65 °C
- Connection: Diverter
- Phase: Single-phase
- Class: Class 2 Cat B Class 2 Cat C
- Maximum continuous operating voltage: 300 V L-N
- Maximum discharge current 8x20µs (Imax): 60 kA
- Nominal discharge current 8x20µs (In): 30 kA
- Configuration: Diverter
- Dimensions (H x L x W): 25mm x 71mm x 93mm
- Weight: 0.31 kg
Key Features
- Single-phase surge diverter
- 30kA nominal discharge current
- 60kA maximum discharge current
- Class 2 Cat B and Cat C protection
- Operating temperature range from -10°C to 65°C
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with electrical safety standards and optimal device performance.
Applications
- Point of entry protection for electrical systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Protects electrical equipment from damage, reducing electronic waste
- Enhances system longevity, minimizing resource consumption for replacements
Warranty Information
Warranty details available upon request from Eaton; typically includes coverage against manufacturing defects.
Available Now
The Eaton 1PH 30kA Quicklag Surge Diverter is available now for immediate purchase. Ideal for protecting residential and commercial electrical installations at the point of entry.
