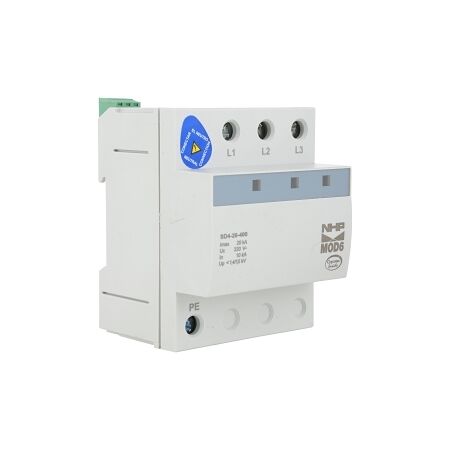

Surge Diverter 3Pole + Neutral | 20kA | DIN Rail Mount | IP20 by NHP
Surge diverter with 20kA max discharge current and DIN rail mounting—ideal for residential and commercial surge protection. Built for safety and efficiency, with IP20 protection and compliance with AS/NZS 60950 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: NHP MOD6 Surge Diverter 3Pole plus Neutral 20kA
Brand: NHP
SKU: MOD6SD420400
Alternatively Known As: Surge Protection Device, Surge Diverter, MOD6 Surge Diverter
Technical Specifications
- Nominal Discharge Surge Current: 10 kA
- Max Discharge Surge Current: 20 kA
- Nominal Voltage AC: 400 V
- Max Continuous Voltage AC: 320 V
- Mounting Method: DIN rail (top hat rail) 35 mm
- Construction Size: 4 modular spacing
- Degree of Protection: IP20
- Max Conductor Cross Section (Solid/Solid Stranded): 35 mm²
- Max Conductor Cross Section (Flexible Fine Strand): 25 mm²
- Dimensions (H x L x W): 90mm x 100mm x 70mm
- Weight: 0.5 kg
Key Features
- Surge diverter with a maximum discharge surge current of 20 kA.
- Designed for DIN rail mounting.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, offices
- Commercial: Retail, hospitality, workspaces
- General: Any location requiring surge protection for electrical systems
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Protects electrical systems from surges, reducing waste and damage.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The NHP MOD6 Surge Diverter 3Pole plus Neutral 20kA is available now for immediate purchase. Ideal for residential and commercial electrical systems requiring surge protection.
