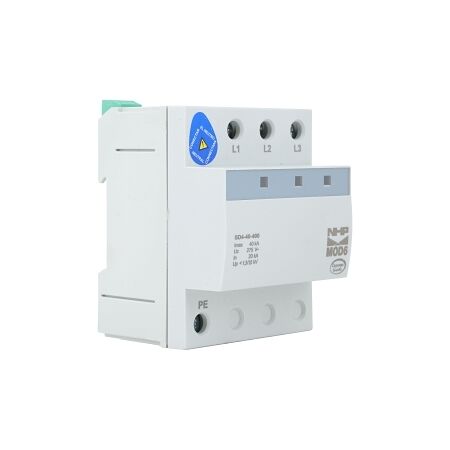

Surge Diverter 3Pole + Neutral | 40kA | DIN Rail Mount | IP20 by NHP
Surge diverter with 40kA max discharge and DIN rail mounting—ideal for residential, commercial, and industrial applications. Built for robust surge protection, with optic signaling and IP20 rating.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Nominal Discharge Surge Current (8/20): 20 kA
- Max Discharge Surge Current (8/20): 40 kA
- Nominal Voltage AC: 240 V
- Max Continuous Voltage AC: 275 V
- Degree of Protection: IP20
- Max Conductor Cross Section (Solid/Solid Stranded): 35 mm²
- Max Conductor Cross Section (Flexible Fine Strand): 25 mm²
- Construction Size: 4 Modular Spacing
- Mounting Method: DIN Rail (Top Hat Rail) 35 mm
- Dimensions (H x L x W): 90mm x 100mm x 70mm
- Weight: 1.0 kg
Key Features
- Surge protection for power supply systems.
- Optic signaling at the device.
- DIN rail mounting for easy installation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, offices
- Commercial: Retail, hospitality, workspaces
- Industrial: Factories, manufacturing facilities
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Protects electrical equipment from damage, reducing electronic waste.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The NHP MOD6 Surge Diverter 3Pole plus Neutral 40kA is available now for immediate purchase. Ideal for protecting electrical systems in various applications.
