Surge Diverter 3Pole + Neutral | 40kA | DIN Rail Mount | Optic Signaling by NHP
Surge diverter with 40kA max discharge and optic signaling—ideal for residential, commercial, and industrial applications. Built for easy monitoring and installation with DIN rail mount.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

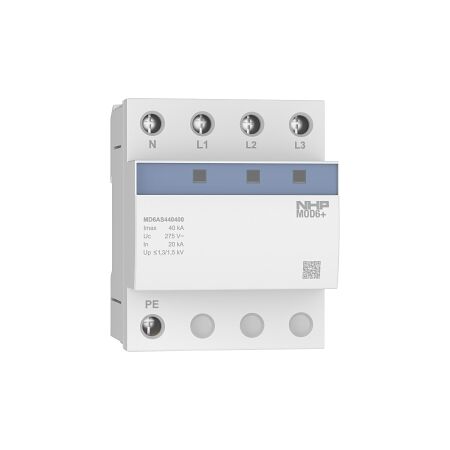

Product Name/Title: NHP MOD6+ Surge Diverter 3Pole plus Neutral 40kA
Brand: NHP
SKU: MD6AS440400
Alternatively Known As: Surge Protection Device, Surge Diverter, Surge Arrestor
Technical Specifications
- Nominal discharge surge current (8/20): 20 kA
- Max discharge surge current (8/20): 40 kA
- Nominal voltage AC: 240 V
- Max continuous voltage AC: 275 V
- Degree of protection: IP20
- Max conductor cross section (solid/stranded): 35 mm² / 25 mm²
- Mounting method: DIN rail (top hat rail) 35 mm
- Dimensions (H x L x W): 90mm x 100mm x 70mm
- Weight: 1.0 kg
Key Features
- Surge diverter with a maximum discharge surge current of 40 kA.
- Optic signaling at the device for easy monitoring.
- DIN rail mounting for convenient installation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small businesses
- Commercial: Retail and office environments
- Industrial: Manufacturing and production facilities
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Protects electrical systems from surges, reducing waste and damage to equipment.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP MOD6+ Surge Diverter 3Pole plus Neutral 40kA is available now for immediate purchase. Ideal for protecting electrical systems in various applications.
