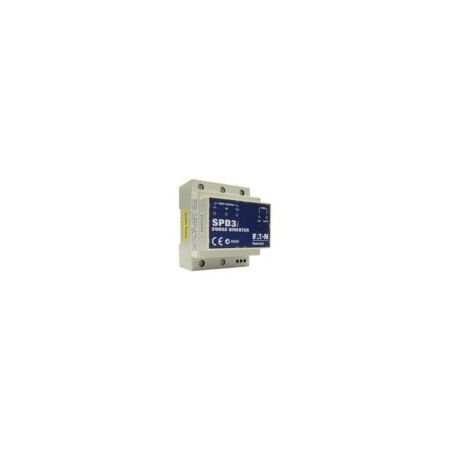

Surge Diverter 60kA | Two Mode Protection | DIN Rail Mount | Eaton
Surge diverter with 60kA maximum discharge current and two mode protection—ideal for industrial and commercial electrical systems. Built for three-phase connections, it features easy DIN rail mounting for quick installation and reliable surge protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Surge Diverter 60kA | Two Mode Protection | DIN Rail Mount | Eaton
Brand: Eaton
SKU: SPD360GI
Alternatively Known As: Surge Protection Device, SPD, Surge Diverter, Lightning Arrester, Surge Suppressor
Technical Specifications
- Fault current: 60 kA
- Connection: Three-phase
- Phase: Three-phase
- Class: Class 2 Cat B and Class 2 Cat C
- Mounting Method: DIN rail 35 mm
- Configuration: Diverter
- Maximum continuous operating voltage: 320 V L-N
- Maximum discharge current 8x20µs (Imax): 60 kA
- Nominal discharge current 8x20µs (In): 20 kA
- Dimensions (H x L x W): 90mm x 68mm x 70mm
- Weight: 0.2 kg
Key Features
- 60kA maximum discharge current
- Two mode protection: Neutral-Earth and Line-Earth
- Class 2 surge protection for categories B and C
- DIN rail 35 mm mounting for easy installation
- Three-phase connection
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with electrical safety standards and proper system protection.
Applications
- Point of entry protection for electrical systems
- Industrial and commercial three-phase electrical installations
- Surge protection for sensitive electrical equipment
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 1768-2007 – Lightning Protection
Environmental Benefits
- Protects electrical equipment from damage, reducing electronic waste
- Enhances system reliability, minimizing downtime and resource waste
Warranty Information
Standard Eaton warranty applies; please refer to Eaton's official warranty policy for details.
Available Now
The Eaton 3Ph 60kA 2 Mode Surge Diverter is available for immediate purchase, ideal for industrial and commercial electrical surge protection applications.
