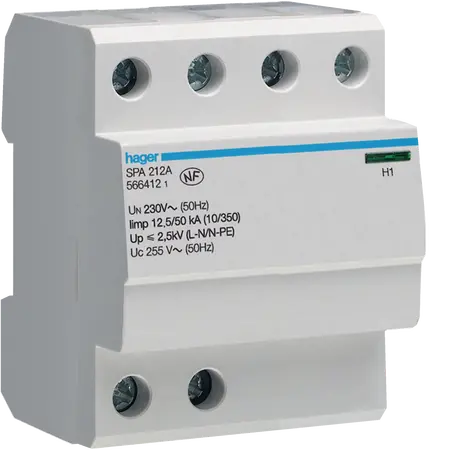

SPD 2P monobloc 12.5kA class 1 with light indicator TT

Surge Protection Device 12.5kA | Light Indicator | 230V by Hager

BRAND: :hager

SKU: SPA212A

$567.90 List price: $726.20

+ −

30 Days Return Delivery Options

Surge protection device with 12.5kA nominal discharge current and light indicator—ideal for residential and commercial installations. Built for safety and reliability, with 230V operational voltage.

Description
Attachments

Product Name/Title: SPD 2P monobloc 12.5kA class 1 with light indicator TT

Brand: Hager

SKU: SPA212A

Alternatively Known As: Surge Protection Device, SPD, Monobloc Surge Protector

Technical Specifications

Capacity: 4 modules
Rated operational voltage: 230 V
Continuous operating voltage: 255 V
Voltage protection level: 2.50 kV
Nominal discharge current: 12.5 kA
Max. overcurrent protection device: 315 A
Max. discharge (Imax): 50 kA
Operating temperature: -40 to 60 °C
Network type: TN, TT
Frequency: 50 - 60 Hz
Nominal tightening torque: 3.60 Nm
Dimensions (H x L x W): 90mm x 68mm x 72mm
Weight: 0.5 kg

Key Features

12.5 kA nominal discharge current for effective surge protection.
Light indicator for operational status.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Residential: Homes, apartments, offices
Commercial: Retail, hospitality, workspaces
General: Any installation requiring surge protection

Standards & Compliance

Complies with AS/NZS 60950 for safety of IT and communication equipment.

Environmental Benefits

RoHS compliant and halogen-free, contributing to reduced environmental impact.

Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Hager SPD 2P Monobloc 12.5kA Class 1 with Light Indicator TT is available now for immediate purchase. Ideal for residential and commercial electrical installations.

SPA212A (SPA212A, 175 Kb) [Download]

reach_declaration_SPA212A.pdf (reach_declaration_SPA212A.pdf, 103 Kb) [Download]

rohs_declaration_SPA212A.pdf (rohs_declaration_SPA212A.pdf, 104 Kb) [Download]

ID1_SPA212A_6S5049H_WEB.pdf (ID1_SPA212A_6S5049H_WEB.pdf, 408 Kb) [Download]

DECLARATION_19_967_09_19.pdf (DECLARATION_19_967_09_19.pdf, 83 Kb) [Download]
