Surge Protection Device 12V | IP20 Rated | DIN Rail Mount by NHP
Surge protection device with 12V nominal voltage and IP20 rating—ideal for residential and commercial applications. Built for easy installation on DIN rail, offering reliable protection against electrical surges.
Sign in
Please login to continue to your account.

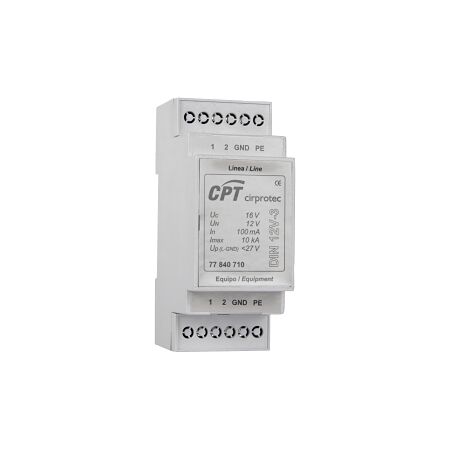

Product Name/Title: Cirprotec Final Diverters SPD Analogue 12V 2 Wires
Brand: NHP
SKU: CPTDIN12V3
Alternatively Known As: Surge Protection Device, SPD, Final Diverter
- Nominal Voltage AC: 12 V
- Max Continuous Voltage AC: 16 V
- Nominal Discharge Surge Current (8/20): 5 kA
- Max Discharge Surge Current (8/20): 10 kA
- Lightning Impulse Current (10/350 µs): 10 kA
- Voltage Protection Level (Core-Earth): 45 V
- Voltage Protection Level (Core-Signal Ground): 27 V
- Frequency: 4000000 MHz
- Number of Protected Wires: 2+GND
- Mounting Method: DIN rail (top hat rail) 35 mm
- Degree of Protection: IP20
- Max Conductor Cross Section: 2.5 mm²
- Dimensions (H x L x W): 90mm x 60mm x 36mm
- Weight: 0.08 kg
- Surge Protection Device Final designed for 12V systems.
- IP20 rated for indoor use.
- DIN rail mounting for easy installation.
- Professional installation by a qualified electrician is recommended for optimal safety.
- Residential: Homes, apartments, offices
- Commercial: Retail, hospitality, workspaces
- General: Any location requiring surge protection for electrical systems
- Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.
- Protects electrical devices from surges, reducing waste and extending product life.
1 year warranty against manufacturing defects.
The Cirprotec Final Diverters SPD Analogue 12V 2 Wires is available now for immediate purchase. Ideal for residential and commercial applications requiring surge protection.
