Surge Protection Device 1P Imax 20 kA | IP20/IP40 | Clip-On by Clipsal
Surge protection device with 1P Imax 20 kA and IP20/IP40 rating—ideal for residential and commercial use. Built for reliable surge arresting, with modular design and clip-on mounting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

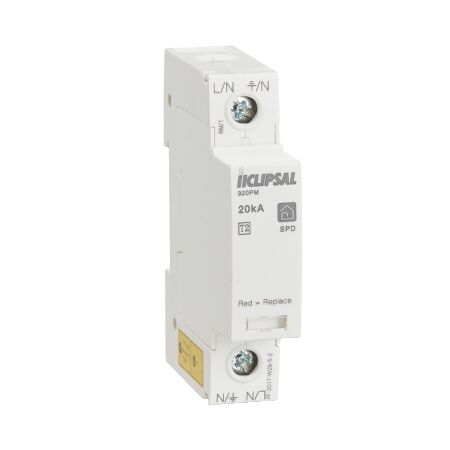

Product Name/Title: Clipsal Resi MAX, Surge Protection Device (SPD), 1P Imax 20 kA
Brand: Clipsal
SKU: 920RM/1
Alternatively Known As: Surge Arrester, Surge Protection Device, SPD
Technical Specifications
- Operating temperature: -25°C to +60°C
- Nominal discharge current: 5 kA
- Maximum discharge current: 20 kA
- Maximum continuous operating voltage: 350 V
- Maximum voltage protection level: <1.2 kV
- Degree of protection: IP20/IP40
- Mounting mode: clip-on
- Connections: tunnel type terminal 2.5-25 mm² rigid, 4-16 mm² flexible with ferrule
- Dimensions (H x L x W): 85mm x 64mm x 18mm
- Weight: 0.128 kg
Key Features
- Modular and reliable surge arrester.
- Rated current of 20 kA and operating voltage of 240VAC.
- IP20 and IP40 protection in enclosure.
- 35mm DIN rail mountable.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, offices
- Commercial: Retail, hospitality, workspaces
- General: Electrical distribution networks
Standards & Compliance
- Compliant with IEC 61643-11:2011.
Environmental Benefits
- Complies with environmental regulations and standards.
Warranty Information
Standard warranty applies.
Available Now
The Clipsal Resi MAX Surge Protection Device (SPD) is available now for immediate purchase. Ideal for residential and commercial electrical distribution networks.
