Surge Protection Device 2 Wire IO | 5kA 24VAC | DIN Mount by NHP
Surge protection device with 5kA discharge current and 24VAC compatibility—ideal for industrial and commercial applications. Built for safeguarding sensitive electronics, with easy DIN rail mounting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

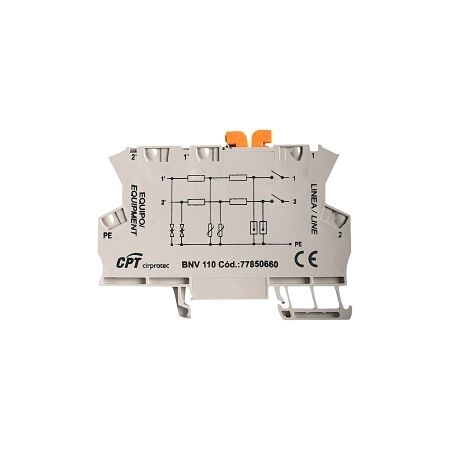

Product Name/Title: Cirprotec BNV Surge Protection Device Analogue Digital Module 2 Wire IO Imax 5kA 24VAC DIN Mount
Brand: NHP
SKU: CPTBNV30
Alternatively Known As: Surge Protection Device, SPD, Surge Diverter, Voltage Surge Protector
Technical Specifications
- Nominal Voltage AC: 24 V
- Max Continuous Voltage AC: 30 V
- Nominal Discharge Surge Current (8/20): 5 kA
- Max Discharge Surge Current (8/20): 5 kA
- Lightning Impulse Current (10/350 µs): 5 kA
- Nominal Load Current: 0.3 A
- Voltage Protection Level (Core-Earth): 45 V
- Frequency: 3000000 MHz
- Number of Protected Wires: 2
- Mounting Method: DIN rail (top hat rail) 35 mm
- Degree of Protection: IP20
- Max Conductor Cross Section: 2.5 mm²
- Dimensions (H x L x W): 91.6mm x 63.2mm x 6mm
- Weight: 0.03 kg
Key Features
- Designed for 24VAC systems with a maximum continuous voltage of 30V.
- Provides surge protection with a nominal discharge surge current of 5 kA.
- DIN rail mounting for easy installation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Protecting sensitive electronic equipment from voltage spikes.
- Commercial: Ensuring the safety of data networks and communication systems.
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Protects electronic devices, reducing electronic waste and promoting sustainability.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Cirprotec BNV Surge Protection Device is available now for immediate purchase. Ideal for industrial and commercial applications requiring surge protection.
Non-Returnable & Non-Cancellable
