Surge Protection Device 200kA | 400VAC | IP55 Rated | EMI Filter by NHP

BRAND: NHP
SKU: CPTCPSBLOCKPLUS200
$6,951.70 List price: $9,230.90
+
Surge protection device with 200kA discharge current and 400VAC nominal voltage—ideal for industrial and commercial electrical systems. Built for durability, with IP55 dust and water protection and EMI filtering.

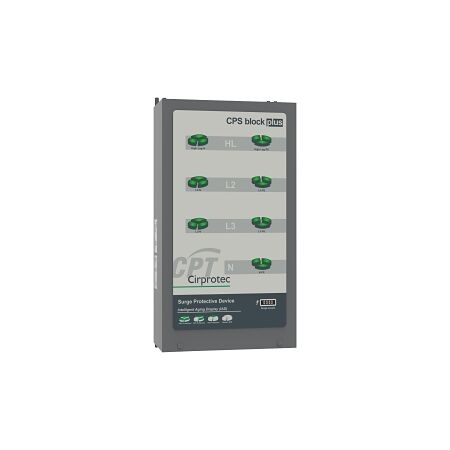

Product Name/Title: Cirprotec CPS Block Plus Surge Protection Device UL 3 Ph L-L, L-N , PE Imax 200kA 400VAC EMI Filter

Brand: NHP

SKU: CPTCPSBLOCKPLUS200

Alternatively Known As: Surge Protection Device, Surge Suppressor, Power Surge Protector

Technical Specifications
  • Max Discharge Surge Current: 200 kA
  • Nominal Voltage AC: 400 V
  • Mounting Method: Direct mounting
  • Degree of Protection: IP55
  • Dimensions (H x L x W): 100mm x 200mm x 150mm
  • Weight: 2.0 kg
Key Features
  • Surge protection device with a maximum discharge surge current of 200 kA.
  • Nominal voltage of 400 V AC.
  • IP55 rated for protection against dust and water.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Power supply systems
  • Commercial: Electrical installations requiring surge protection
Standards & Compliance
  • Complies with relevant Australian standards for surge protection devices.
Environmental Benefits
  • Designed to enhance the longevity of electrical systems by preventing damage from voltage spikes.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Cirprotec CPS Block Plus Surge Protection Device is available now for immediate purchase. Ideal for industrial and commercial electrical installations.

Non-Returnable & Non-Cancellable

CPTCPSBLOCKPLUS200-AU-Surge-Protection-Device-UL-Datasheet.pdf (CPTCPSBLOCKPLUS200-AU-Surge-Protection-Device-UL-Datasheet.pdf, 210 Kb) [Download]
