Surge Protection Device 24V | Final Diverter | DIN Rail Mount | IP20 by NHP
Surge protection device with 24V nominal voltage and DIN rail mounting—ideal for industrial and commercial data networks. Built for final stage protection, with IP20 rating for indoor use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

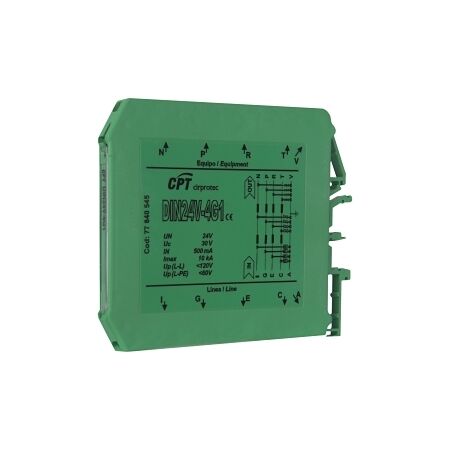

Product Name/Title: Cirprotec Final Diverters SPD Comm IO 24V 2 Wires
Brand: NHP
SKU: CPTDIN24V2G2
Alternatively Known As: Surge Protection Device, Final Diverter, SPD for Data Networks
Technical Specifications
- Nominal Voltage AC: 24 V
- Max Continuous Voltage AC: 30 V
- Nominal Discharge Surge Current (8/20): 5 kA
- Max Discharge Surge Current (8/20): 10 kA
- Lightning Impulse Current (10/350 µs): 10 kA
- Voltage Protection Level (Core-Core): 60 V
- Voltage Protection Level (Core-Earth): 600 V
- Frequency: 2000000 MHz
- Number of Protected Wires: Other
- Mounting Method: DIN rail (top hat rail) 35 mm
- Degree of Protection: IP20
- Max Conductor Cross Section: 2.5 mm²
- Dimensions (H x L x W): 90mm x 90mm x 8mm
- Weight: 0.07 kg
Key Features
- Surge Protection Device designed for final stage protection.
- IP20 rated for indoor use.
- DIN rail mounting for easy installation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Protection of data networks and communication systems
- Commercial: Use in various electrical installations requiring surge protection
Standards & Compliance
- Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.
Environmental Benefits
- Protects sensitive electronic equipment from voltage spikes, reducing waste and prolonging device lifespan.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Cirprotec Final Diverters SPD Comm IO 24V 2 Wires is available now for immediate purchase. Ideal for industrial and commercial applications requiring surge protection.
Non-Returnable & Non-Cancellable
