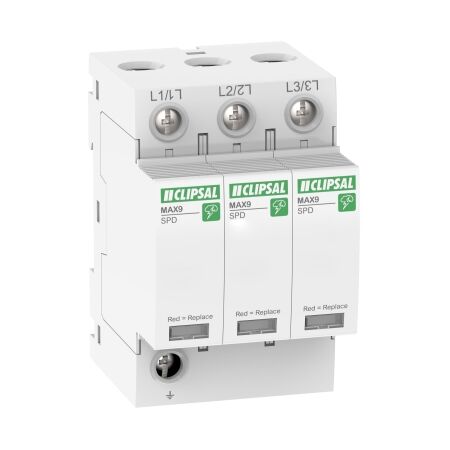

Surge Protection Device 3P 40kA | Type 2 | IP20 by Clipsal

BRAND: Clipsal
SKU: MX9SP340
$247.20 List price: $370.70
+
Surge protection device with 3-phase, 40kA capacity—ideal for electrical distribution networks. Built for commercial and residential systems, with Type 2 technology and IP20 protection.

Product Name/Title: MAX9, Surge Protection Device, SPD, 3P, 40kA

Brand: Clipsal

SKU: MX9SP340

Alternatively Known As: Surge Arrester, Surge Protection Device, SPD

Technical Specifications
  • Rated operational voltage: 240/415 V +/- 6 % AC 50/60 Hz
  • IP degree of protection: IP20
  • IK degree of protection: IK03
  • Ambient air temperature for operation: -25...70 °C
  • Ambient air temperature for storage: -40...85 °C
  • Pollution degree: 2
  • Operating altitude: 0...2000 m
  • Signalling circuit voltage: AC: 250 V 50/60 Hz
  • Signalling output current: 0.25 A
  • Dimensions (H x L x W): 85mm x 64mm x 54mm
  • Weight: 0.34 kg
Key Features
  • Surge arrester type: electrical distribution network
  • Nominal discharge current: 15 kA
  • Maximum discharge current: 40 kA
  • Response time: <= 25 ns
  • Type 2 surge arrester technology
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Electrical distribution networks
  • Commercial and residential electrical systems
Standards & Compliance
  • Complies with IEC 61643-11:2011 and EN 61643-11:2012.
Environmental Benefits
  • Compliant with EU RoHS directive, toxic heavy metal free, and mercury free.
Warranty Information

7 years warranty against manufacturing defects.

Available Now

The Clipsal MAX9 Surge Protection Device is available now for immediate purchase. Ideal for electrical distribution networks.

MX9SP340 (MX9SP340, 232 Kb) [Download]
