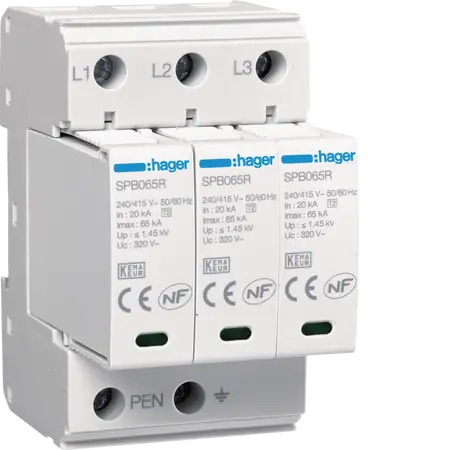

Surge Protection Device 3P T2 TNC Uc 320V In 20kA Imax 65kA remote contact

Surge Protection Device 3P T2 | 320V 20kA | Remote Contact by Hager

BRAND: :hager

SKU: SPB365R

$448.30 List price: $573.20

+ −

30 Days Return Delivery Options

Surge protection device with 320V continuous voltage and 20kA nominal discharge current—ideal for residential and commercial installations. Built for safety, with remote contact for monitoring.

Description
Attachments

Product Name/Title: Surge Protection Device 3P T2 TNC Uc 320V In 20kA Imax 65kA remote contact

Brand: Hager

SKU: SPB365R

Alternatively Known As: Surge Protector, Surge Suppressor, SPD, Surge Protection Device

Technical Specifications

Rated operational voltage Ue: 240 - 415 V
Voltage protection level Up: 1.45 kV
Max. overcurrent protection device: 160 A
Operating temperature: -40 - 80 °C
Network type: TN-C
Frequency: 50 - 60 Hz
Dimensions (H x L x W): 99mm x 70mm x 54mm
Weight: 0.5 kg

Key Features

3 modules for effective surge protection.
Continuous operating voltage of 320V.
Nominal discharge current of 20kA.
Maximum discharge current (Imax) of 65kA.
Remote signaling contact for monitoring.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Residential: Homes, apartments, and small buildings
Commercial: Offices, retail spaces, and industrial applications
General: Any electrical installation requiring surge protection

Standards & Compliance

Complies with AS/NZS 60950 for safety of IT and communication equipment.

Environmental Benefits

RoHS compliant, reducing hazardous substances in electrical equipment.
Halogen-free materials contribute to safer disposal and recycling.

Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Hager Surge Protection Device 3P T2 TNC Uc 320V is available now for immediate purchase. Ideal for residential and commercial electrical installations.

SPB365R (SPB365R, 169 Kb) [Download]

(PEP_HAGER_HAGE_00444_V01.01_EN_27082021.pdf, 231 Kb) [Download]

reach_declaration_SPB365R.pdf (reach_declaration_SPB365R.pdf, 103 Kb) [Download]

rohs_declaration_SPB365R.pdf (rohs_declaration_SPB365R.pdf, 104 Kb) [Download]

(ID1_SPBXXXD_R_6LE007690AB.pdf, 911 Kb) [Download]

(SURGE_BROCHURE_AUS_LOWRES.pdf, 934 Kb) [Download]

(DECLARATION_21_2979_07_21.pdf, 306 Kb) [Download]
