Surge Protection Device 4 Wires | 24V | 10kA Max Discharge | DIN Rail by NHP
Surge protection device with 24V nominal voltage and 10kA max discharge—ideal for industrial and commercial data networks. Built for safety, with IP20 rating and easy DIN rail installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

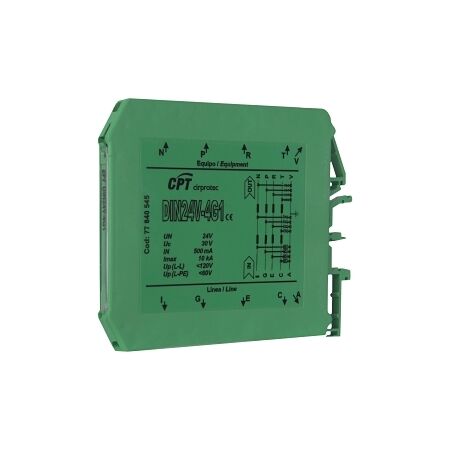

Product Name/Title: Cirprotec Final Diverters SPD Comm IO 24V 4 Wires
Brand: NHP
SKU: CPTDIN24V4G1
Alternatively Known As: Surge Protection Device, Final Diverter, SPD for Data Networks
Technical Specifications
- Nominal Voltage AC: 24 V
- Max Continuous Voltage AC: 30 V
- Nominal Discharge Surge Current (8/20): 5 kA
- Max Discharge Surge Current (8/20): 10 kA
- Lightning Impulse Current (10/350 µs): 10 kA
- Voltage Protection Level (Core-Core): 120 V
- Voltage Protection Level (Core-Earth): 60 V
- Frequency: 3000000 MHz
- Number of Protected Wires: 4
- Mounting Method: DIN rail (top hat rail) 35 mm
- Degree of Protection: IP20
- Max Conductor Cross Section: 2.5 mm²
- Dimensions (H x L x W): 90mm x 90mm x 7.5mm
- Weight: 0.71 kg
Key Features
- Surge protection for 4 wires with a maximum discharge surge current of 10 kA.
- IP20 rated for indoor use.
- DIN rail mounting for easy installation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Protecting sensitive electronic equipment from surges
- Commercial: Ensuring the safety of data networks and MCR technology
Standards & Compliance
- Complies with relevant Australian standards for surge protection devices.
Environmental Benefits
- Helps in reducing electronic waste by protecting devices from surges.
Warranty Information
Standard warranty applies.
Available Now
The Cirprotec Final Diverters SPD Comm IO 24V 4 Wires is available now for immediate purchase. Ideal for protecting sensitive electronic equipment in industrial and commercial settings.
Non-Returnable & Non-Cancellable
