Trade Discount 22%

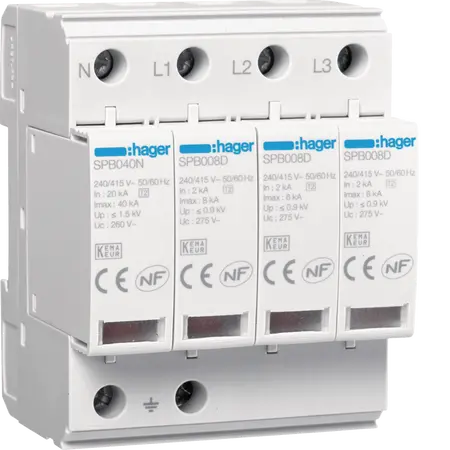

Surge Protection Device 4P | 275V Uc | 2kA In | 8kA Imax by Hager

BRAND: :hager
SKU: SPB408D
$319.60 List price: $408.60
+ −
30 Days Return Delivery Options
Surge protection device with 275V continuous voltage and 2kA nominal discharge current—ideal for residential, commercial, and industrial applications. Built for comprehensive safety, with 8kA max discharge capacity.

Product Name/Title: Surge Protection Device 4P TNS/TT Uc 275V In 2 kA Imax 8 kA Up 1kV

Brand: Hager

SKU: SPB408D

Alternatively Known As: Surge Protector, Surge Suppressor, SPD, Surge Protection Device

Technical Specifications
  • Capacity: 4 modules
  • Rated operational voltage Ue: 240 - 415 V
  • Continuous operating voltage Uc: 275 V
  • Voltage protection level Up: 0.90 kV
  • Nominal discharge current In: 2 kA
  • Max discharge current Imax: 8 kA
  • Operating temperature: -40 - 80 °C
  • Network type: TN-S, TT
  • Frequency: 50 - 60 Hz
  • Dimensions (H x L x W): 89.8mm x 65.7mm x 71mm
  • Weight: 0.5 kg
Key Features
  • 4 modules for comprehensive surge protection.
  • Rated operational voltage of 240 - 415 V.
  • Continuous operating voltage Uc of 275 V.
  • Nominal discharge current In of 2 kA.
  • Maximum discharge current Imax of 8 kA.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Residential: Homes, apartments, offices
  • Commercial: Retail, hospitality, workspaces
  • Industrial: Factories, manufacturing plants
Standards & Compliance
  • Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
  • RoHS compliant, reducing hazardous substances in electrical equipment.
  • Halogen-free materials contribute to safer disposal and recycling.
Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Surge Protection Device 4P TNS/TT Uc 275V is available now for immediate purchase. Ideal for residential, commercial, and industrial applications.

SPB408D (SPB408D, 191 Kb) [Download]

(PEP_HAGER_HAGE_00444_V01.01_EN_27082021.pdf, 231 Kb) [Download]

reach_declaration_SPB408D.pdf (reach_declaration_SPB408D.pdf, 103 Kb) [Download]

rohs_declaration_SPB408D.pdf (rohs_declaration_SPB408D.pdf, 104 Kb) [Download]

(ID1_SPBX08D_6LE007644AB.pdf, 685 Kb) [Download]

(SURGE_BROCHURE_AUS_LOWRES.pdf, 934 Kb) [Download]

(DECLARATION_21_2979_07_21.pdf, 306 Kb) [Download]
