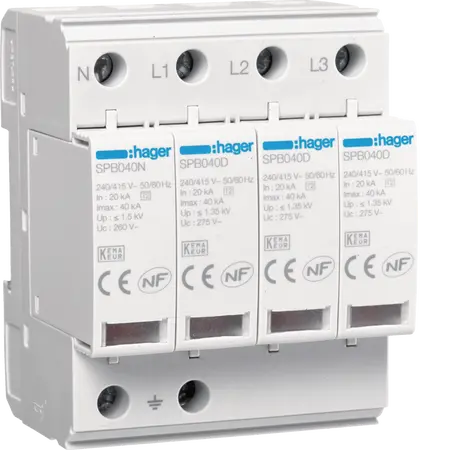

Surge Protection Device 4P T2 | 275V Uc | 20kA In | 40kA Imax by Hager

BRAND: :hager
SKU: SPB440D
$379.30 List price: $485.00
+ −
30 Days Return Delivery Options
Surge protection device with 275V continuous voltage and 20kA nominal discharge current—ideal for residential, commercial, and industrial applications. Built for comprehensive protection, with 4 modules and 40kA max discharge capacity.

Product Name/Title: Surge Protection Device 4P T2 TNS/TT Uc 275V In 20kA Imax 40kA

Brand: Hager

SKU: SPB440D

Alternatively Known As: Surge Protector, Surge Suppressor, SPD, Surge Protection Device

Technical Specifications
  • Capacity: 4 modules
  • Rated operational voltage Ue: 240 - 415 V
  • Continuous operating voltage Uc: 275 V
  • Voltage protection level Up: 1.35 kV
  • Nominal discharge current In: 20 kA
  • Max discharge current Imax: 40 kA
  • Operating temperature: -40 to 80 °C
  • Network type: TN-S, TT
  • Frequency: 50 - 60 Hz
  • Dimensions (H x L x W): 89.8mm x 65.7mm x 71mm
  • Weight: 0.5 kg
Key Features
  • 4 modules for comprehensive surge protection.
  • Rated operational voltage of 240 - 415 V.
  • Continuous operating voltage Uc of 275 V.
  • Nominal discharge current In of 20 kA.
  • Maximum discharge current Imax of 40 kA.
  • Operating temperature range from -40 to 80 °C.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Residential: Homes, apartments, offices
  • Commercial: Retail, hospitality, workspaces
  • Industrial: Factories, manufacturing facilities
Standards & Compliance
  • Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
  • RoHS and REACH compliant, contributing to reduced environmental impact.
Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Surge Protection Device 4P T2 TNS/TT Uc 275V In 20kA Imax 40kA is available now for immediate purchase. Ideal for residential, commercial, and industrial applications.

SPB440D (SPB440D, 191 Kb) [Download]

(PEP_HAGER_HAGE_00444_V01.01_EN_27082021.pdf, 231 Kb) [Download]

reach_declaration_SPB440D.pdf (reach_declaration_SPB440D.pdf, 103 Kb) [Download]

rohs_declaration_SPB440D.pdf (rohs_declaration_SPB440D.pdf, 104 Kb) [Download]

(ID1_SPBXXXD_R_6LE007690AB.pdf, 911 Kb) [Download]

(SURGE_BROCHURE_AUS_LOWRES.pdf, 934 Kb) [Download]

(DECLARATION_21_2979_07_21.pdf, 306 Kb) [Download]
