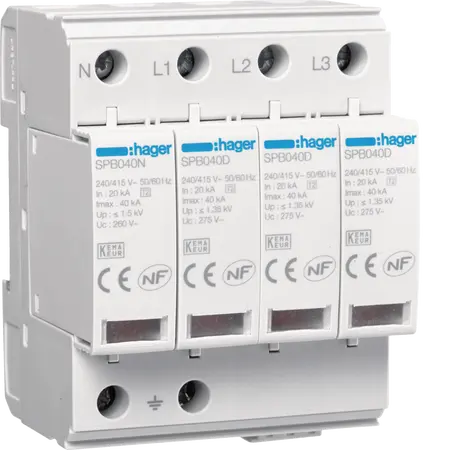

Surge Protection Device 4P T2 | 275V Uc | 20kA In | Remote Contact by Hager

BRAND: :hager
SKU: SPB440R
$482.70 List price: $617.30
+ −
30 Days Return Delivery Options
Surge protection device with 275V continuous voltage and 20kA nominal discharge current—ideal for residential, commercial, and industrial applications. Built for comprehensive protection, with remote contact for easy monitoring.

Product Name/Title: Surge Protection Device 4P T2 TNS/TT Uc 275V In 20kA Imax 40kA remote contact

Brand: Hager

SKU: SPB440R

Alternatively Known As: Surge Protector, Surge Suppressor, SPD, Surge Protection Device

Technical Specifications
  • Capacity: 4 modules
  • Voltage: 240 - 415 V
  • Continuous operating voltage Uc: 275 V
  • Voltage protection level Up: 1.35 kV
  • Nominal discharge current In: 20 kA
  • Max discharge current Imax: 40 kA
  • Operating temperature: -40 - 80 °C
  • Network configuration: TN-S, TT
  • Frequency: 50 - 60 Hz
  • Dimensions (H x L x W): 90mm x 58mm x 71mm
  • Weight: 0.5 kg
Key Features
  • 4 modules for comprehensive surge protection.
  • Rated operational voltage of 240 - 415 V.
  • Continuous operating voltage Uc of 275 V.
  • Nominal discharge current In of 20 kA.
  • Max discharge current Imax of 40 kA.
  • Remote signalling contact for monitoring.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Residential: Homes, apartments, offices
  • Commercial: Retail, hospitality, workspaces
  • Industrial: Factories, manufacturing facilities
Standards & Compliance
  • Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
  • RoHS compliant, reducing hazardous substances in electrical equipment.
  • Halogen-free materials contribute to safer disposal and recycling.
Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Hager Surge Protection Device 4P T2 TNS/TT Uc 275V is available now for immediate purchase. Ideal for residential, commercial, and industrial applications.

SPB440R (SPB440R, 195 Kb) [Download]

(PEP_HAGER_HAGE_00444_V01.01_EN_27082021.pdf, 231 Kb) [Download]

reach_declaration_SPB440R.pdf (reach_declaration_SPB440R.pdf, 103 Kb) [Download]

rohs_declaration_SPB440R.pdf (rohs_declaration_SPB440R.pdf, 104 Kb) [Download]

(ID1_SPBXXXD_R_6LE007690AB.pdf, 911 Kb) [Download]

(SURGE_BROCHURE_AUS_LOWRES.pdf, 934 Kb) [Download]

(DECLARATION_21_2979_07_21.pdf, 306 Kb) [Download]
