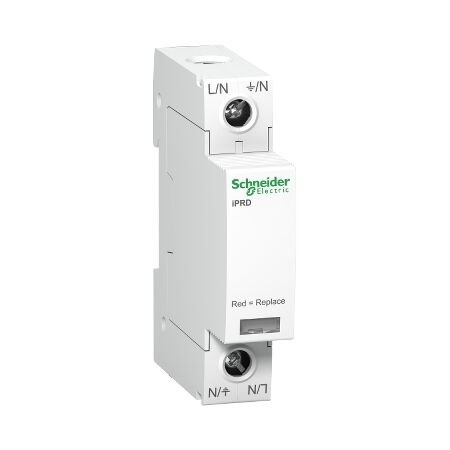

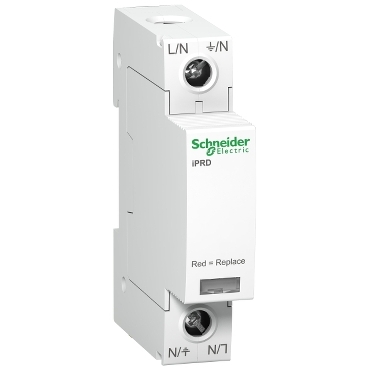

Surge Protection Device iPRD 20 20kA 350V 1P | DIN Rail Mount | Visual Status Indicator | Replaceable Cartridge | @Pack of 1 | by Clipsal
The Surge Protection Device iPRD 20 20kA 350V 1P is designed to safeguard your electrical installations from transient overvoltages. With a nominal discharge current of 20kA and a compact DIN rail mount design, it's perfect for residential, commercial, and industrial applications. The visual status indicator and replaceable cartridge ensure easy maintenance and reliable performance, making it an essential component for protecting sensitive electronic equipment.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Surge Protection Device iPRD 20 20kA 350V 1P | DIN Rail Mount | Visual Status Indicator | Replaceable Cartridge | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHA9L20100
Alternatively Known As: Surge Protection Device, SPD, iPRD20, Clipsal Surge Protector, SCHA9L20100, 20kA Surge Arrester
Technical Specifications
- Type: Surge Protection Device (SPD)
- Poles: 1P (Single Pole)
- Nominal Discharge Current (In): 20kA (8/20μs)
- Maximum Discharge Current (Imax): 40kA (8/20μs)
- Maximum Continuous Operating Voltage (Uc): 350V AC
- Mounting: DIN rail
- Status Indicator: Visual
- Replaceable Cartridge: Yes
- Dimensions (H x L x W): 90mm x 70mm x 18mm
- Weight: 0.15 kg
Key Features
- Single pole surge protection device
- Nominal discharge current: 20kA (8/20μs)
- Maximum continuous operating voltage (Uc): 350V AC
- Compact DIN rail mount design
- Visual indicator for device status
- Replaceable cartridge for easy maintenance
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 wiring rules and local regulations.
Applications
- Residential and commercial electrical switchboards
- Industrial power distribution panels
- Protection of sensitive electronic equipment from transient overvoltages
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 1768 – Lightning Protection
Environmental Benefits
- Protects electrical and electronic equipment, reducing waste from damage
- Enhances system reliability, minimizing downtime and resource consumption
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal iPRD 20 20kA 350V 1P Surge Protection Device (SCHA9L20100) is available for immediate purchase. Ideal for protecting electrical installations in residential, commercial, and industrial applications.
