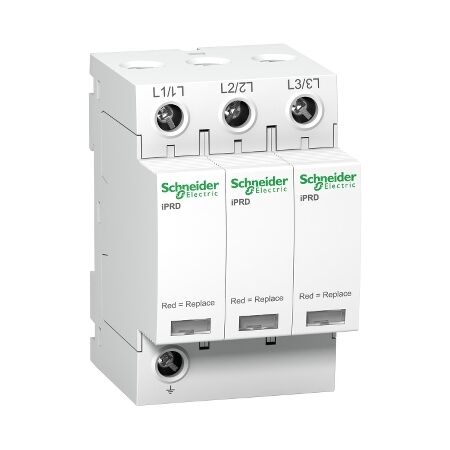

Surge Protection Device IPRD 40 40kA 350V 3P | DIN Rail Mountable | Visual Status Indicator | by Clipsal
The IPRD 40 Surge Protection Device is designed for three-phase electrical systems, providing robust protection with a maximum discharge current of 40kA and a voltage protection level of ≤1.5kV. Ideal for commercial and industrial switchboards, this device features a pluggable module for easy replacement and a visual status indicator to ensure your sensitive electronic equipment remains safe from surges.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Surge Protection Device IPRD 40 40kA 350V 3P | DIN Rail Mountable | Visual Status Indicator | by Clipsal
Brand: Clipsal
SKU: SCHA9L40300
Alternatively Known As: Surge Protection Device, SPD, 3 Phase Surge Protector, Clipsal SCHA9L40300, IPRD40, 40kA Surge Arrester
Technical Specifications
- Type: Surge Protection Device (SPD)
- Poles: 3P (Three Phase)
- Rated Voltage (Uc): 350V AC
- Nominal Discharge Current (In): 20kA
- Maximum Discharge Current (Imax): 40kA
- Voltage Protection Level (Up): ≤1.5kV
- Mounting: DIN rail
- Status Indicator: Visual
- Replaceable Module: Yes
- Dimensions (H x L x W): 90mm x 68mm x 54mm
- Weight: 0.5 kg
Key Features
- Three-phase surge protection device
- Nominal discharge current: 20kA
- Maximum discharge current: 40kA
- Voltage protection level: ≤1.5kV
- Rated voltage: 350V AC
- Pluggable module for easy replacement
- Visual status indicator for protection status
- DIN rail mountable
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 wiring rules and local regulations.
Applications
- Commercial and industrial electrical switchboards
- Residential main switchboards
- Protection of sensitive electronic equipment
- Data centers and server rooms
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 1768 – Lightning Protection (for surge protection devices)
Environmental Benefits
- Protects electrical and electronic equipment from damage, reducing electronic waste.
- Enhances system reliability, minimizing downtime and resource consumption.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal IPRD 40 40kA 350V 3P Surge Protection Device (SCHA9L40300) is available for immediate purchase. Ideal for protecting electrical installations in commercial, industrial, and residential environments.
