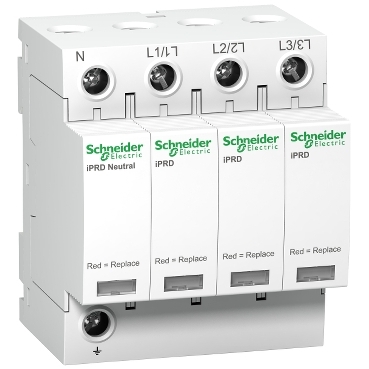

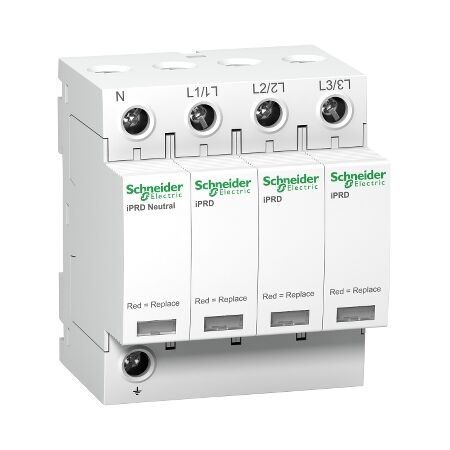

Surge Protection Device IPRD 65R 65kA 350V 3PN | Remote Indication | DIN Rail Mount | by Clipsal
The Surge Protection Device IPRD 65R offers a high surge protection capacity of 65kA per phase, making it ideal for commercial, industrial, and residential switchboards. With a nominal voltage of 350V and remote indication contacts, this device ensures reliable monitoring and protection of sensitive electronic equipment, enhancing system reliability and minimizing downtime.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Surge Protection Device IPRD 65R 65kA 350V 3PN | Remote Indication | DIN Rail Mount | by Clipsal
Brand: Clipsal
SKU: SCHA9L65601
Alternatively Known As: Surge Protection Device, SPD, Clipsal Surge Protector, IPRD 65R, SCHA9L65601, 3 Phase Surge Protector, DIN Rail SPD
Technical Specifications
- Surge protection rating: 65kA per phase (8/20μs waveform)
- Nominal voltage: 350V AC
- Configuration: 3 phase + neutral (3PN)
- Remote indication contacts: Yes
- Mounting: DIN rail
- Visual end-of-life indicator: Yes
- Response time: <25ns
- Operating temperature: -40°C to +80°C
- Dimensions (H x L x W): 90mm x 70mm x 108mm
- Weight: 0.7 kg
Key Features
- High surge protection capacity of 65kA per phase
- 350V nominal voltage for 3 phase + neutral systems
- Remote indication contacts for monitoring device status
- Plug-in module for easy replacement and maintenance
- Visual end-of-life indicator
- Compact DIN rail mount design
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Main switchboards in commercial and industrial buildings
- Residential switchboards for surge protection
- Data centers and telecommunication facilities
- Critical infrastructure requiring surge protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 1768 – Lightning Protection
Environmental Benefits
- Protects sensitive electronic equipment from damage, reducing electronic waste
- Enhances system reliability, minimizing downtime and resource consumption
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal IPRD 65R 65kA 350V 3PN Surge Protection Device with Remote Tran (SCHA9L65601) is available for immediate purchase. Ideal for protecting electrical installations in commercial, industrial, and residential environments.
