Surge Protection Device Type 1 & 2 | 1 Phase L-N | 25kA Iimp | DIN Rail by NHP
Surge protection device for 1 phase systems with 25kA Iimp and 100kA Imax—ideal for residential, commercial, and industrial applications. Built for DIN rail mounting, ensuring optimal safety and compliance with AS/NZS 3000 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

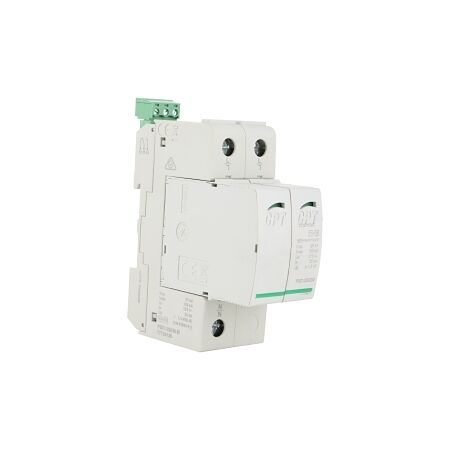

Product Name/Title: Cirprotec PSC Surge Protection Device Type 1 and 2, 1 Phase, L-N, Iimp 25kA Imax 100kA 240VAC
Brand: NHP
SKU: CPTPSC125230IR
Alternatively Known As: Surge Protection Device, SPD, Surge Suppressor
Technical Specifications
- Max Discharge Surge Current (8/20): 100 kA
- Nominal Voltage AC: 240 V
- Max Continuous Voltage AC: 275 V
- Mounting Method: DIN rail (top hat rail) 35 mm
- Construction Size: 2 modular spacing
- Degree of Protection: IP20
- Dimensions (H x L x W): 90mm x 70mm x 36mm
- Weight: 1.0 kg
Key Features
- Surge protection for 1 phase systems.
- Iimp rating of 25kA and Imax rating of 100kA.
- Designed for DIN rail mounting.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes and apartments
- Commercial: Offices and retail spaces
- Industrial: Manufacturing and production facilities
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Protects electrical systems from surges, reducing waste and extending equipment lifespan.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Cirprotec PSC Surge Protection Device Type 1 and 2 is available now for immediate purchase. Ideal for residential, commercial, and industrial applications.
