Surge Protection Device Type 1 & 2 | 12.5kA Iimp | 65kA Imax | 240VAC by NHP
Surge protection device with 12.5kA nominal and 65kA maximum discharge current—ideal for residential, commercial, and industrial applications. Built for safety, with IP20 rating and DIN rail mounting for easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

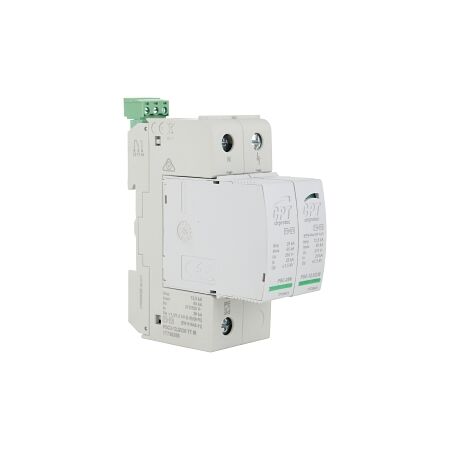

Product Name/Title: Cirprotec PSC Surge Protection Device Type 1 and 2 1 Phase L-N and N-PE Iimp 12.5kA Imax 65kA 240VAC
Brand: NHP
SKU: CPTPSC212230IR
Alternatively Known As: Surge Protection Device, SPD, Surge Suppressor
Technical Specifications
- Nominal Discharge Surge Current (8/20): 12.5 kA
- Maximum Discharge Surge Current (8/20): 65 kA
- Nominal Voltage AC: 240 V
- Max Continuous Voltage AC: 275 V
- Voltage Protection Level: 1.3 kV
- Mounting Method: DIN rail (top hat rail) 35 mm
- Construction Size: 2 modular spacing
- Degree of Protection: IP20
- Dimensions (H x L x W): 90mm x 70mm x 36mm
- Weight: 1.0 kg
Key Features
- Surge protection for 1 Phase L-N and N-PE.
- Nominal discharge surge current of 12.5 kA.
- Maximum discharge surge current of 65 kA.
- IP20 rated for indoor use.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes and apartments
- Commercial: Offices and retail spaces
- Industrial: Manufacturing and production facilities
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Protects electrical systems from surges, reducing waste and damage to equipment.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Cirprotec PSC Surge Protection Device Type 1 and 2 is available now for immediate purchase. Ideal for residential, commercial, and industrial applications.
