Surge Protection Device Type 1 & 2 | 25kA Imsc | 200kA Imax | 400VAC by NHP
Surge protection device with 25kA nominal and 200kA max discharge current—ideal for industrial, commercial, and residential systems. Built for safety with IP20 rating and DIN rail mounting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

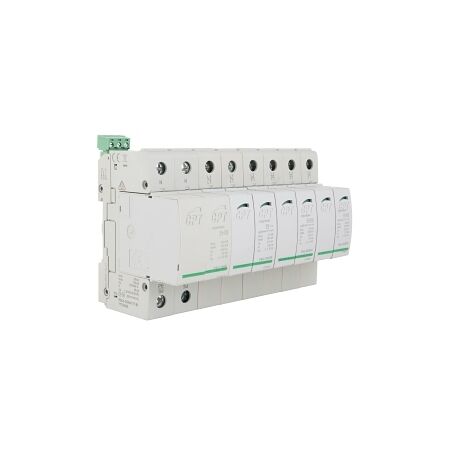

Product Name/Title: Cirprotec PSC Surge Protection Device Type 1 and 2 3 Ph L-L, L-N, N-PE Imsc 25kA Imax 200kA 400VAC
Brand: NHP
SKU: CPTPSC425400IR
Alternatively Known As: Surge Protection Device, Surge Suppressor, Electrical Surge Protector
Technical Specifications
- Nominal Discharge Surge Current (8/20): 25 kA
- Max Discharge Surge Current (8/20): 200 kA
- Protection Class: I, II
- Nominal Voltage AC: 400 V
- Max Continuous Voltage AC: 275 V
- Voltage Protection Level: 1.3 kV
- Mounting Method: DIN rail (top hat rail) 35 mm
- Construction Size: 8 modular spacing
- Degree of Protection: IP20
- Dimensions (H x L x W): 100mm x 200mm x 100mm
- Weight: 1.5 kg
Key Features
- Surge protection for L-L, L-N, and N-PE configurations.
- Nominal discharge surge current of 25 kA.
- Maximum discharge surge current of 200 kA.
- IP20 rated for indoor use.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Protecting electrical systems in factories and manufacturing plants
- Commercial: Safeguarding office buildings and retail environments
- Residential: Ensuring safety in home electrical systems
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Protects electrical equipment from damage, reducing electronic waste.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Cirprotec PSC Surge Protection Device Type 1 and 2 is available now for immediate purchase. Ideal for protecting electrical systems in various environments.
