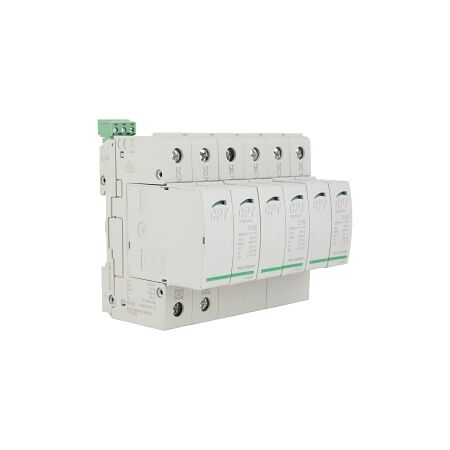

Surge Protection Device Type 1 & 2 | 3 Phase 25kA | 400VAC by NHP
Surge protection device with 3 phase 25kA capacity and 400VAC—ideal for industrial, commercial, and residential applications. Built for high discharge capacity, with DIN rail mounting for easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cirprotec PSC Surge Protection Device Type 1 and 2 3 Phase L-L and L-N Iimp 25kA Imsc 200kA 400VAC
Brand: NHP
SKU: CPTPSC325400IR
Alternatively Known As: Surge Protection Device, Surge Suppressor, Voltage Surge Protector
Technical Specifications
- Nominal Discharge Surge Current (8/20): 25 kA
- Max Discharge Surge Current (8/20): 200 kA
- Protection Class: I, II
- Nominal Voltage AC: 400 V
- Max Continuous Voltage AC: 275 V
- Voltage Protection Level: 1.5 kV
- Mounting Method: DIN rail (top hat rail) 35 mm
- Construction Size: 6 modular spacing
- Degree of Protection: IP20
- Dimensions (H x L x W): 100mm x 120mm x 90mm
- Weight: 1.5 kg
Key Features
- Surge protection for both line-to-line and line-to-neutral applications.
- High discharge surge current capacity of 25 kA.
- Maximum discharge surge current of 200 kA.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Protecting machinery and equipment from voltage surges
- Commercial: Safeguarding electrical systems in office buildings
- Residential: Ensuring home electrical systems are protected from surges
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Protects electrical systems, reducing waste from damaged equipment.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Cirprotec PSC Surge Protection Device Type 1 and 2 is available now for immediate purchase, ideal for protecting electrical systems in various applications.
