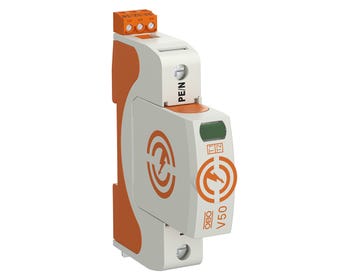

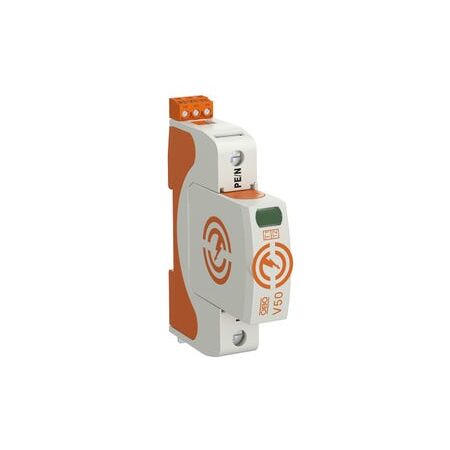

Surge Protection Device Type 1+2 | 50kA Rating | Integrated Sensor | Single Pole by Cabac
The Cabac SURGE DEV V50 TYPE 1+2 1P 50kA + SENSOR provides robust surge protection with Type 1 and Type 2 ratings, suitable for a wide temperature range and includes a sensor for enhanced monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SURGE DEV V50 TYPE 1+2 1P 50kA + SENSOR
Brand: Cabac
SKU: V50-1-FS-280
Alternatively Known As: Surge Protection Device, Surge Protector, SPD Type 1+2, Single Pole Surge Protector
Technical Specifications
- Type 1 Protection: 12.5kA
- Type 2 Protection: 50kA
- Temperature Rating: -40 to +80 degrees Celsius
- Single Pole (1P) configuration
- Includes integrated sensor for surge monitoring
- Dimensions (H x L x W): 70mm x 60mm x 90mm
- Weight: 0.5 kg
Key Features
- Type 1+2 surge protection
- Single pole (1P) design
- Integrated sensor for monitoring
- Temperature rating from -40 to +80 degrees Celsius
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with electrical safety standards and optimal device performance.
Applications
- Electrical power systems requiring surge protection
- Residential, commercial, and industrial electrical installations
- Protection of sensitive electronic equipment from voltage surges
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Protects electrical equipment from damage, reducing electronic waste
- Enhances longevity of electrical systems, minimizing resource consumption
Warranty Information
5 year warranty against manufacturing defects.
Available Now
The Cabac SURGE DEV V50 TYPE 1+2 1P 50kA + SENSOR is available now for immediate purchase. Ideal for protecting electrical installations in residential, commercial, and industrial environments.
