Surge Protection Device Type 2 | 1 Phase L-N | 40kA 240VAC by NHP
Surge protection device with 40kA max discharge and 240VAC nominal voltage—ideal for residential, commercial, and industrial applications. Built for enhanced safety with DIN rail mounting and IP20 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

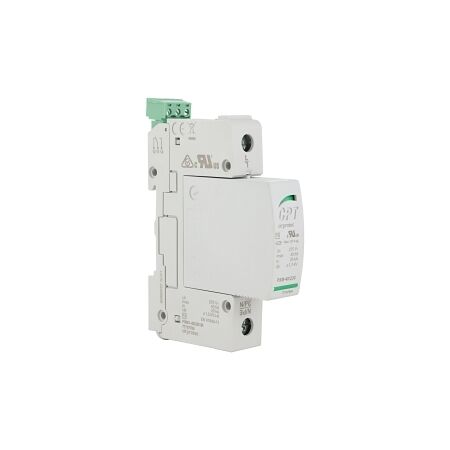

Product Name/Title: Cirprotec PSM Surge Protection Device Type 2 1 Phase L-N Imax 40kA 240VAC
Brand: NHP
SKU: CPTPSM140230IR
Alternatively Known As: Surge Protection Device, Surge Suppressor, Power Surge Protector
Technical Specifications
- Nominal discharge surge current: 20 kA
- Max discharge surge current: 40 kA
- Protection class: II
- Nominal voltage AC: 240 V
- Max continuous voltage AC: 255 V
- Voltage protection level: 1.3 kV
- Mounting method: DIN rail (top hat rail) 35 mm
- Construction size: 1 modular spacing
- Degree of protection: IP20
- Max conductor cross section solid/stranded: 35 mm²
- Max conductor cross section flexible fine strand: 25 mm²
- Dimensions (H x L x W): 90mm x 70mm x 18mm
- Weight: 0.5 kg
Key Features
- Surge protection class II for enhanced safety.
- Max discharge surge current of 40 kA.
- Nominal voltage of 240 V with a voltage protection level of 1.3 kV.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes and apartments
- Commercial: Offices and retail spaces
- Industrial: Manufacturing and production facilities
Standards & Compliance
- Complies with AS/NZS 1768 for surge protection devices.
Environmental Benefits
- Helps protect electrical devices from voltage spikes, reducing waste and prolonging equipment life.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Cirprotec PSM Surge Protection Device Type 2 is available now for immediate purchase. Ideal for protecting electrical systems in various applications.
