Surge Protection Device Type 2 | 20kA 240VAC | DIN Rail Mount | IP20 by NHP
Surge protection device with 20kA max discharge and 240VAC nominal voltage—ideal for residential and commercial applications. Built for enhanced safety with DIN rail mounting and IP20 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

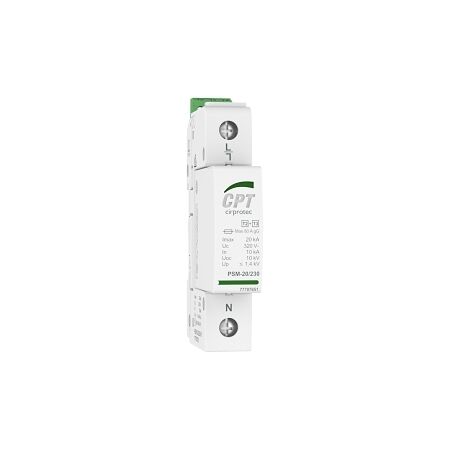

Product Name/Title: Cirprotec PSM Surge Protection Device Type 2 1 Phase L-N Imax 20kA 240VAC
Brand: NHP
SKU: CPTPSM120230IR
Alternatively Known As: Surge Protection Device, SPD, Type 2 Surge Protector
Technical Specifications
- Max discharge surge current: 20 kA
- Protection class: II
- Nominal voltage AC: 240 V
- Max continuous voltage AC: 320 V
- Voltage protection level: 1.4 kV
- Mounting method: DIN rail (top hat rail) 35 mm
- Construction size: 1 modular spacing
- Degree of protection: IP20
- Max conductor cross section (solid): 35 mm²
- Max conductor cross section (flexible): 25 mm²
- Dimensions (H x L x W): 90mm x 70mm x 18mm
- Weight: 0.5 kg
Key Features
- Surge protection class II for enhanced safety.
- Max discharge surge current of 20 kA.
- Nominal voltage of 240 V with a maximum continuous voltage of 320 V.
- Voltage protection level of 1.4 kV.
- Designed for DIN rail mounting.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes and apartments
- Commercial: Offices and retail spaces
- Industrial: Manufacturing and production facilities
Standards & Compliance
- Complies with relevant Australian standards for surge protection devices.
Environmental Benefits
- Helps protect electrical systems from surges, reducing waste and damage.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Cirprotec PSM Surge Protection Device Type 2 is available now for immediate purchase. Ideal for protecting electrical systems in residential and commercial settings.
