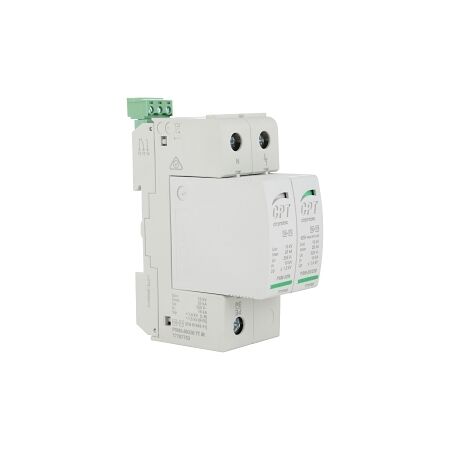

Cirprotec PSM Surge Protection Device Type 2 1 Phase L-N and N-PE Imax 20kA 240VAC

Surge Protection Device Type 2 | 20kA 240VAC | DIN Rail Mount | IP20 by NHP

BRAND: NHP

SKU: CPTPSM220230IR

$230.00 List price: $305.40

+ −

30 Days Return Delivery Options

Surge protection device with 20kA discharge current and 240VAC rating—ideal for residential and commercial systems. Built for enhanced safety, with DIN rail mounting and IP20 protection.

Description
Attachments

Product Name/Title: Cirprotec PSM Surge Protection Device Type 2 1 Phase L-N and N-PE Imax 20kA 240VAC

Brand: NHP

SKU: CPTPSM220230IR

Alternatively Known As: Surge Protection Device, Surge Suppressor, Power Surge Protector

Technical Specifications

Nominal Discharge Surge Current: 20 kA
Max Discharge Surge Current: 20 kA
Protection Class: II
Nominal Voltage AC: 240 V
Max Continuous Voltage AC: 255 V
Voltage Protection Level: 1.4 kV
Mounting Method: DIN rail (top hat rail) 35 mm
Construction Size: 2 modular spacing
Degree of Protection: IP20
Max Conductor Cross Section (Solid/Solid Stranded): 35 mm²
Max Conductor Cross Section (Flexible Fine Strand): 25 mm²
Dimensions (H x L x W): 90mm x 70mm x 36mm
Weight: 0.5 kg

Key Features

Surge protection class II for enhanced safety.
Nominal discharge surge current of 20 kA.
Voltage protection level of 1.4 kV.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Residential: Homes, apartments, offices
Commercial: Retail, hospitality, workspaces
General: Any location requiring surge protection for electrical systems

Standards & Compliance

Complies with relevant Australian standards for surge protection devices.

Environmental Benefits

Helps protect electrical devices from damage due to voltage spikes.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Cirprotec PSM Surge Protection Device Type 2 is available now for immediate purchase. Ideal for residential and commercial electrical systems.

CPTPSM220230IR-AU-Surge-Protection-Device-Datasheet.pdf (CPTPSM220230IR-AU-Surge-Protection-Device-Datasheet.pdf, 238 Kb) [Download]
